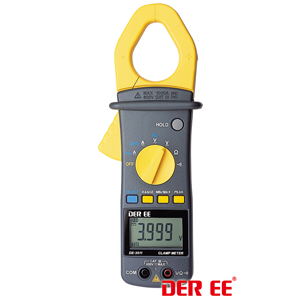

DE-3511 AC/DC Clamp Meter
| Item No.: | DE-3511 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Resolution 0.01A
Peak Hold (ACA & DCA)
Data Hold
Min. /Max. Hold
Range Hold
Auto Power Off Selection
Auto Range & Manual Range
One Touch To Zero Set (DCA)
Synchronize Measurement Of Frequency and ACA or ACV (Frequency can be read during measure ACA or ACV by pressing "Select button")
Temp.(DE-3512)
High Accuracy
Specifications：
Clamp Size：φ40mm or 10x47mm
LCD Display：3 3/4 Digits LCD With 4300 Counts
Applicable Circuit Voltage：AC 600V or less
Sampling Reading Rate：2 Times/ Sec. Approx.
Range：Automatic & Manual For Selection
Applicable Height：Up to 2000m (above sea level)
Auto Power Off：Approx. 10 Minutes
Low Battery： Display on LCD
Battery：AM-3 (LR6) AA Alkaline 1.5V x2
Safety standard：IEC 61010-1 , IEC 61010-2-032 600V CAT III Pollution Degree 2
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
241(L)x62(W,Max91)x34(H,Max45)mm
Approx.410g (Including battery)
Accessories：
Battery AM-3 (LR6) AA 1.5V x2
Instruction Manual x1
Test Lead (black+red) x1
Carrying case x1
Optional Accessories：
Temperature Probe (DE-3512)
Temperature Adaptor (NR-38) (DE-3512)
AC Line Splitter(DE-10ALS)
*Applicable to electrical appliances small current
