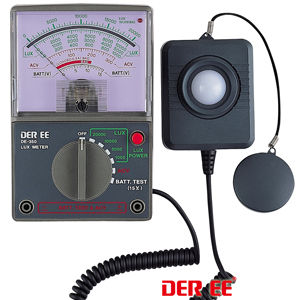

DE-350 Analog Light Meter
| Item No.: | DE-350 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Sensor Used The Exclusive Photo Sensor & Color
Correction Filter
Light Sensor Separate Design For Optimum Position Measure
Battery test (MAX.DC 15V.)
AC Voltage Measurement (Max. AC 300V.)
Cosine Angle Corrected
Specifications：
Photometer Range(nm)：400~700
Sensitivity Peak Wavelength(nm)：500
Measuring Range Of Light : 1000 / 5000 / 10000 / 20000 Lux.
AC Voltage Measurement：300V Maximum with 50 or 60 Hz
Battery :9Vx1；1.5Vx2
Battery Test：0~12V (Max. 15V DC)
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation)
Storage：-10°C~ 50°C(14℉~122℉)/<80%R.H.(no condensation)
Dimension & Weight：
Dimension：Meter–152(L)x100(W)x38(H)mm
Light Receiver–85(L)x67(W)x32(H)mm
Weight：Approx. 365g(Including battery)
Accessories：
Battery 9V DC x 1
Battery UM-3 1.5V x 2
Instruction Manual x 1
Test Leads (red + black) x 1
Leather Gift Box x 1
Light Sensor Separate Design For Optimum Position Measure
Battery test (MAX.DC 15V.)
AC Voltage Measurement (Max. AC 300V.)
Cosine Angle Corrected
Specifications：
Photometer Range(nm)：400~700
Sensitivity Peak Wavelength(nm)：500
Measuring Range Of Light : 1000 / 5000 / 10000 / 20000 Lux.
AC Voltage Measurement：300V Maximum with 50 or 60 Hz
Battery :9Vx1；1.5Vx2
Battery Test：0~12V (Max. 15V DC)
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation)
Storage：-10°C~ 50°C(14℉~122℉)/<80%R.H.(no condensation)
Dimension & Weight：
Dimension：Meter–152(L)x100(W)x38(H)mm
Light Receiver–85(L)x67(W)x32(H)mm
Weight：Approx. 365g(Including battery)
Accessories：
Battery 9V DC x 1
Battery UM-3 1.5V x 2
Instruction Manual x 1
Test Leads (red + black) x 1
Leather Gift Box x 1
