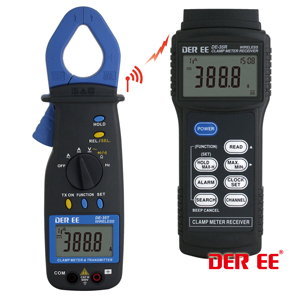

DE-35 Wireless Clamp Meter (AC/DC)
| Item No.: | DE-35 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Patent Design – Multiple Countries
Measurement Innovation of Clamp Meter
Wireless Transmission of Data – Distance 300 feet (100M) at Open Space.
Safety & Convenience & Reduce Labor Cost
Simultaneous MAX/MIN Hold with Real Time
Data Hold, Max Hold
24 hours clock
Audible Alarm Function Set at Hi or Lo (voltage or current)
Maximum 6 Channels (1 receiver works with 6 transmitters / clamp meter)
Variable Built-in Transmission Interval
Clamp Meter Operation Individually without Transmission.
USB Interface & Software (Optional)
SPECIFICATION：
DE-35T (Transmitter)
‧ Clamp Size: φ30mm or 10x35mm
‧ Auto Range
‧ MAX 600A/600V
‧ Relative Measurement
‧ Auto Power Off Selection
‧ Data Hold
‧ Sampling Rate: 3 times per second
‧ Transmission Time Span: 2, 10, 30, 60 & 120 sec. by user's option
DE-35R (Receiver—Main Station)
‧ Simultaneous MIN /MAX Hold With Real Time
‧ Max Hold
‧ Data Hold
‧ Audible Alarm Set For Over Range at Hi or Lo (Voltage current)
‧ Manual Search For Signal
‧ 24 Hours Clock.
RS232 Interface (Optional)
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<80%R.H.(no condensation)
Dimension & Weight：
DE-35R：179(L)x72(W)x32(H)mm
DE-35T：220(L)x64(W)x35(H)mm
Accessories：
Battery AA 1.5V x4
Instruction Manual x1
Test Lead (black+red) x1
Optional Accessories：
USB Cable x1
CD Rom (software) x1
