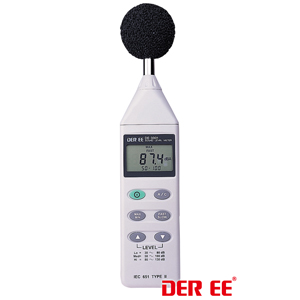

DE-3301 Sound Level Meter
| Item No.: | DE-3301 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
4 Digits LCD
Resolution 0.1 dB, Update Cycle 0.5 sec.
Max. / Min. Hold
External Battery Cartridge For Easy Replacing Batteries
Electric Condenser Microphone
Specifications：
LCD Display：4 digits LCD Display
Low Battery： display on LCD
Measuring Range：30~130dB
Frequency Weighting：A,C
Dynamic Range：50dB
Frequency Range：31.5Hz~8kHz
Time Weighting：Fast—125 ms
Slow—1 Sec.
Auxiliary Outputs：
AC Output：1 Vrms/full scale (equivalent to the maximum value of each level), output impedance approx. 50Ω
DC Output：10mV/dB, output impedance approx. 100Ω
Battery：9VBattery (NEDA 1604, IEC 6F22, JIS 006P)
Safety standard：IEC 651 TYPE II
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
275(L)x64(W)x30(H)mm
Approx.280g
Accessories：
Battery 9V x 1
Instruction Manual x 1
Carry Case x 1
Calibration Screw-Driver x 1
Windscreen x 1
Optional Accessories：
Standard Tripod Connector x 1
Resolution 0.1 dB, Update Cycle 0.5 sec.
Max. / Min. Hold
External Battery Cartridge For Easy Replacing Batteries
Electric Condenser Microphone
Specifications：
LCD Display：4 digits LCD Display
Low Battery： display on LCD
Measuring Range：30~130dB
Frequency Weighting：A,C
Dynamic Range：50dB
Frequency Range：31.5Hz~8kHz
Time Weighting：Fast—125 ms
Slow—1 Sec.
Auxiliary Outputs：
AC Output：1 Vrms/full scale (equivalent to the maximum value of each level), output impedance approx. 50Ω
DC Output：10mV/dB, output impedance approx. 100Ω
Battery：9VBattery (NEDA 1604, IEC 6F22, JIS 006P)
Safety standard：IEC 651 TYPE II
TEMP./Humidity：
Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
275(L)x64(W)x30(H)mm
Approx.280g
Accessories：
Battery 9V x 1
Instruction Manual x 1
Carry Case x 1
Calibration Screw-Driver x 1
Windscreen x 1
Optional Accessories：
Standard Tripod Connector x 1
