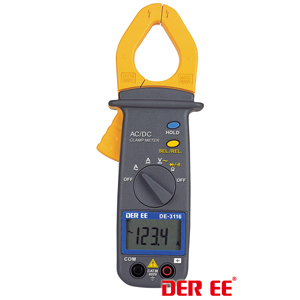

DE-3116 AC/DC Clamp Meter (Pocket Size)
Item No.: | DE-3116 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Auto Range
Auto Power Off
One touch to zero set (DCA)
Data Hold
Resolution 0.1A
Pocket Size
High Accuracy
Frequency Measurement (DE-3116)
Capacitance Measurement (DE-3116C)
Specifications:
Clamp Size:φ30mm or 10x35mm
LCD Display:3 3/4 Digits LCD With 4000 Counts
Applicable Circuit Voltage:AC 600V or less
Sampling Reading Rate:3 Times/ Sec. Approx.
Range:Automatic
Applicable Height:Up to 2000m (above sea level)
Auto Power Off:Approx. 30 Minutes
Low Battery: Display on LCD
Battery:AA A Battery 1.5V x2
Safety standard:IEC 61010-1 , IEC 61010-2-032 600V CAT III Pollution Degree 2
TEMP./Humidity:
Operation:0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage:-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight:
189(L)x50(W,Max71)x30(H,Max47)mm
Approx.220g (Including battery)
Accessories:
Battery AAA 1.5V x2
Instruction Manual x1
Test Leads (red+black) x1
Carrying case x1
Optional Accessories:
AC Line Splitter(DE-10ALS)
*Applicable to electrical appliances small current
