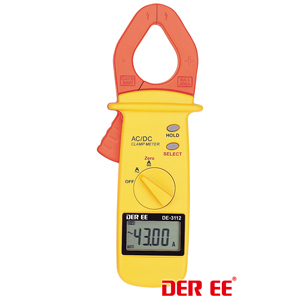

DE-3112 AC/DC Clamp Meter (Pocket Size)
| Item No.: | DE-3112 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
True RMS (DE-3112R)
Auto Power Off Selection
Auto Range
High Accuracy
One touch to zero set (DCA)
Data Hold
Resolution 0.01A
Pocket Size
High Accuracy
Specifications：
Clamp Size：φ30mm or 10x35mm
LCD Display：3 3/4 Digits LCD With 4300 Counts
Applicable Circuit Voltage：AC 600V or less
Sampling Reading Rate：2 Times/ Sec. Approx.
Range：Automatic
Applicable Height：Up to 2000m (above sea level)
Auto Power Off：Approx. 10 Minutes
Low Battery： Display on LCD
Battery：AA A Battery 1.5V x2
Safety standard：IEC 61010-1 , IEC 61010-2-032 600V CAT III Pollution Degree 2
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
189(L)x50(W,Max71)x30(H,Max47)mm
Approx.210g (Including battery)
Accessories：
Battery AAA 1.5V x2
Instruction Manual x1
Carrying case x1
Optional Accessories：
AC Line Splitter(DE-10ALS)
*Applicable to electrical appliances small current
