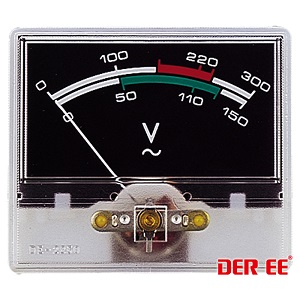

DE-2850 VU panel meter
| Item No.: | DE-2850 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
When you order DER EE VU meter, please
indicate about the following information:
Meter Dimension：Please indicate meter size
Internal Resistance：250Ω , 650Ω, 750Ω, 1200Ω
Sensitivity：200µA , 250µA , 500µA, 1mA
Pointer Color：As your color request
Scale Plate：Custom design according to your drawing
Lamp：Standard type is 12V/55mA transparent.If you request special specs., please indicate the voltage and current
Install position of the level meter：Vertical or horizontal
Popular spec：500µA/650Ω
SIZE : 55 x 48 x 24.8 mm
Meter Dimension：Please indicate meter size
Internal Resistance：250Ω , 650Ω, 750Ω, 1200Ω
Sensitivity：200µA , 250µA , 500µA, 1mA
Pointer Color：As your color request
Scale Plate：Custom design according to your drawing
Lamp：Standard type is 12V/55mA transparent.If you request special specs., please indicate the voltage and current
Install position of the level meter：Vertical or horizontal
Popular spec：500µA/650Ω
SIZE : 55 x 48 x 24.8 mm
