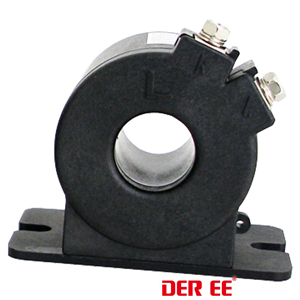

DE-23RCT Current Transformer
| Item No.: | DE-23RCT |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
This CT is small, light and suitable
for use with electrical measuring instruments.
The primary winding is either a cable or a busbar, which is insulated for the application voltage.
For use with Watt.Var,Watt/Var, Watt/Watt-Hour Transducer, Meters and Relays.
The secondary winding and ring shaped which has good electrical and mechanical prosperities.
The fixing base can be mounted either in line with CT or transversely.
The standard to be followed : IEC 60044-1
Accuracy Class : 1.0
Rated Voltage : 0.6kV
NOTE: The insulation level of the primary
conductor determines the max. operating voltage.
Insulation test voltage (60Hz,1min):4kV
Rated Frequency : 50/60Hz
Rated short-time over current : 40 times the rated primary current
The primary winding is either a cable or a busbar, which is insulated for the application voltage.
For use with Watt.Var,Watt/Var, Watt/Watt-Hour Transducer, Meters and Relays.
The secondary winding and ring shaped which has good electrical and mechanical prosperities.
The fixing base can be mounted either in line with CT or transversely.
The standard to be followed : IEC 60044-1
Accuracy Class : 1.0
Rated Voltage : 0.6kV
NOTE: The insulation level of the primary
conductor determines the max. operating voltage.
Insulation test voltage (60Hz,1min):4kV
Rated Frequency : 50/60Hz
Rated short-time over current : 40 times the rated primary current
