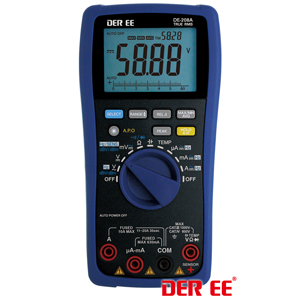

DE-208A Digital Multimeter(D.M.M)
| Item No.: | DE-208A |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
True RMS
Auto Hold/Data hold
Auto power off selection
Auto range & manual range
Zero set for capacitance
Overload protection with audible alarm
Large LCD with dual displays
Backlight：Blue
Peak+ /Peak-
Max / Min / Avg hold with real time
Response to AC bandwidth ... max. 10kHz
Optional Clamp Sensor:AC/DC 600A max. (DE-711)
Bar graph Display
Simultaneous display of measuring and meter interior temperature
Specifications：
LCD Display：6700 Counts
Sampling Rate：Approx. 4 Times/Sec.
Range：Automatic & Manual
Overload：”OL” Display On LCD
Low Battery： Display On LCD
Auto Power Off：In 20 Minutes Approx.
Battery：9V x1
Safety standard：IEC 61010-1 CAT IV 600V IEC 61010-1 CAT.III 1000V
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
188(L)x95(W)x52(H)mm
Approx.415g (excluding battery)
Accessories：
9V Alkaline Battery x1
Instruction Manual x1
Test Leads (black + red) x1
Optional Accessories：
IR-USB interface adaptor
USB cable
Software CD ROM
Clamp sensor (DE-711)
K-TYPE temperature adapter (NR-38)
K-TYPE thermocouple (NR-39)
