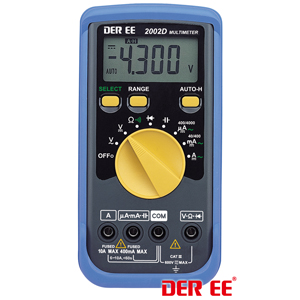

DE-2002D Digital Multimeter(D.M.M)
| Item No.: | DE-2002D |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Auto Hold
Auto Power Off Selection
Auto Range & Manual Range
Max. 20A (for 30 sec.)
Zero Set For Capacitance Measurement(DE-2002/2003)
Big Current Under Protection
High Accuracy
Specifications：
LCD Display：3 3/4 Digits With 4300 Counts
Sampling Rate：Approx. 2 times per second
Range：Automatic & manual
Overload：”OL” Display On LCD
Low Battery： Display on LCD
Auto Power Off：In 20 Minutes Approx.
Battery：Standard 1.5V x2
EMC standard：EN 55011:1998 Group 1 Class B
EN 61326-1; 1997+A1; 1998
Safety standard：IEC 61010-1 (2010) CAT.III 600V (2001D/2002D/2003D)
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
155(L)x74(W)x31(H)mm
Approx.240g (Including battery)
Accessories：
Battery AAA 1.5V x 2
Instruction Manual x 1
Test Lead (red + black) x 1
Rubber Holster + Stand Rack x 1
Auto Power Off Selection
Auto Range & Manual Range
Max. 20A (for 30 sec.)
Zero Set For Capacitance Measurement(DE-2002/2003)
Big Current Under Protection
High Accuracy
Specifications：
LCD Display：3 3/4 Digits With 4300 Counts
Sampling Rate：Approx. 2 times per second
Range：Automatic & manual
Overload：”OL” Display On LCD
Low Battery： Display on LCD
Auto Power Off：In 20 Minutes Approx.
Battery：Standard 1.5V x2
EMC standard：EN 55011:1998 Group 1 Class B
EN 61326-1; 1997+A1; 1998
Safety standard：IEC 61010-1 (2010) CAT.III 600V (2001D/2002D/2003D)
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
155(L)x74(W)x31(H)mm
Approx.240g (Including battery)
Accessories：
Battery AAA 1.5V x 2
Instruction Manual x 1
Test Lead (red + black) x 1
Rubber Holster + Stand Rack x 1
