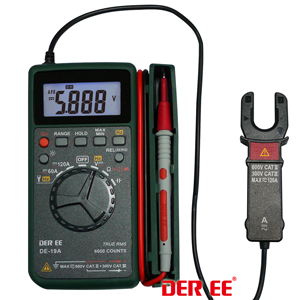

DE-19A Pocket Size Digital Multimeter
| Item No.: | DE-19A |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Max：AC/DC 120A
Data hold
Auto power off selection
Max / Min data hold
Auto range & manual range
One touch for fast zero set for DCA
Overload protection
One key shift reading of Hz, A & V
Test leads complied with IEC61010-031 Edition 1.0 2008-02
Backlight (DE-19A)
Specifications：
LCD Display：6600 Counts
Sampling Rate：Approx. 3 times per second
Range：Automatic & manual
Overload：”OL” Display On LCD
Low Battery： Display on LCD
Auto Power Off：In 15 Minutes Approx.
Battery：Standard 1.5V x2
Safety standard：IEC 61010-1 CAT II 600V IEC 61010-1 CAT.III 300V
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
130(L)x81(W)x22(H)mm
Approx.160g (Excluding battery)
Accessories：
Battery AAA 1.5V x2
Instruction Manual x1
