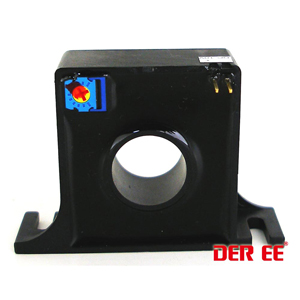

DE-15MCTB Current Transformer
| Item No.: | DE-15MCTB |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Rating Current：AC 50A
Output：DC 10V
Linearity：As graph above
Applied Voltage：AC 2000V, 1min (between aperture and terminals)
Impendance：DC 500V, over 100MΩ (between aperture and terminals)
Fire Retardant Level：94V0
Output Terminals：2.54 mm pin
Anti-vibration：50 Hz 5G
Temperature：
Operation Temperature：-10°C~50°C / below 80% R.H. (no condensation)
Storage Temperature：-20°C~60°C / below 70% R.H. (no condensation)
Material & Weight：
Material：ABS 765A case with epoxy
Weight：40 g
Output：DC 10V
Linearity：As graph above
Applied Voltage：AC 2000V, 1min (between aperture and terminals)
Impendance：DC 500V, over 100MΩ (between aperture and terminals)
Fire Retardant Level：94V0
Output Terminals：2.54 mm pin
Anti-vibration：50 Hz 5G
Temperature：
Operation Temperature：-10°C~50°C / below 80% R.H. (no condensation)
Storage Temperature：-20°C~60°C / below 70% R.H. (no condensation)
Material & Weight：
Material：ABS 765A case with epoxy
Weight：40 g
