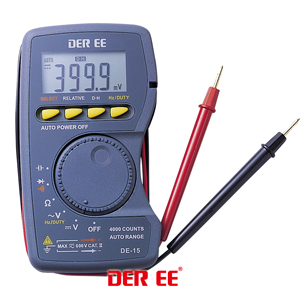

DE-15 Pocket Size Digital Multimeter
| Item No.: | DE-15 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Auto
Range
Auto Power Off Selection
29 Ranges of Measurement
Capacitance Measurement
Hz/Duty Measurement
Relative Measurement
Data Hold
3 3/4 Digits 4000 Counts LCD Display
Reeling Test Leads-Easy To Carry
Specifications：
LCD Display：3 3/4 Digits LCD With 4000 Counts
Range：Automatic
Sampling Reading Rate：Approx. 3 Times/ Sec.
Low Battery： Symbol Display
Auto Power Off：In 15 Minutes Approx.
Battery：LR-44x2 or SR-44x2
Battery Life：Approx. 200 Hours At DCV
Safety standard：IEC 61010-1 CAT. II 600V Pollution Degree 2
TEMP./Humidity：
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
121(L)x68(W)x20(H)mm
Approx.96g (Including battery)
Accessories：
Instruction Manual x 1
LR-44 Button Cell (installed) x 2
Test Lead (black+red) x 1
