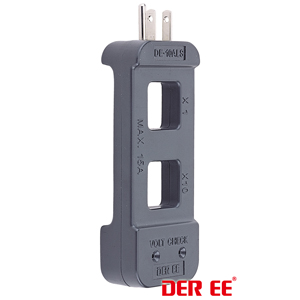

DE-10ALS AC Line Splitter
| Item No.: | DE-10ALS |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Apply For: AC Voltage & Current
Amplified Rate of Current: x1 time, x10 times
Power Line Rate: ≤120V(AC);≤15A (AC)
OPERATION：
Plug DE-10ALS to the socket (≤120V AC;≤15A AC) and plug the connect of electrical to be measured to the other side of DE-10ALS
Warning：
For safety reason, do not operate DE-10ALS over the limited range at AC 120V; AC 15A.
Dimension & Weight：
Clamp Opening Size: 25×25 mm
Dimension: 153(L)x53(W)x28(H)mm
Weight: Approx. 100g (0.22 lbs)
TEMP./Humidity：
Operation：-10°C~50°C(14℉~122℉)/≤80%R.H.(No Condensation)
Storage：-10℃~60℃(14℉~140℉)/≤70%R.H.(no condensation)
Amplified Rate of Current: x1 time, x10 times
Power Line Rate: ≤120V(AC);≤15A (AC)
OPERATION：
Plug DE-10ALS to the socket (≤120V AC;≤15A AC) and plug the connect of electrical to be measured to the other side of DE-10ALS
Warning：
For safety reason, do not operate DE-10ALS over the limited range at AC 120V; AC 15A.
Dimension & Weight：
Clamp Opening Size: 25×25 mm
Dimension: 153(L)x53(W)x28(H)mm
Weight: Approx. 100g (0.22 lbs)
TEMP./Humidity：
Operation：-10°C~50°C(14℉~122℉)/≤80%R.H.(No Condensation)
Storage：-10℃~60℃(14℉~140℉)/≤70%R.H.(no condensation)
