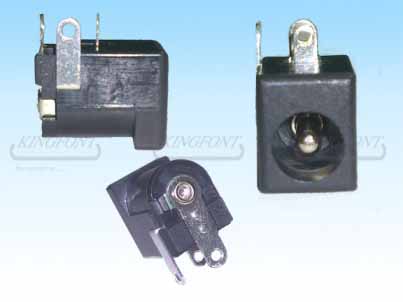

DC Power Jack - JAKSX-E03TTB00X

DC Power Jack

Item No.: JAKSX-E03TTB00X
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products


Product Name:DC POWER JACK
Part No: JAKSX-E03TTB00 X
                                                 (1)
          (1) Center Pin mode:
                 A:Pin DIA 2.00mm.
                 B:Pin DIA 2.50mm.


      Pitch: 4.7mm
      Number of port: 1
      Circuits: 3             RoHS compliant
      Net Weight: 2.0g
      Packing:  PE BAG: 500pcs/BAG


APPLICATION:
    1. Laptop / Projector
    2. Camera / CD-ROM/ Modem/LCD TV/ Monitor/ Electric cars
    3. Scanner/ External optical drives/ Hub


SPECIFICATION:
    Electrical:
                1. Current rating: 2 Amperes DC
                2. Voltage: 12 Volts DC
    Environmental:
                1. Operating temperature: -25℃ ~ 85℃
    MATERIAL:
                1. Insulator Material:High Temperature plastic , UL 94V-0 Colour: Black
                2. Terminal:Copper Alloy
                3.  Plating:
                            Contact: Tin Plating 100u" min.
                            Under-plating: 50u" min. Nickel-plated all over PRODUCT


FEATURES:
         1. DC power supply socket
