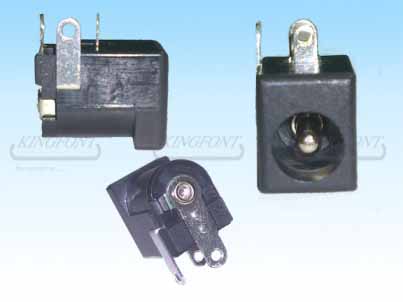

DC Power Jack - JAKDR-CNXTTBX00

DC Power Jack

Item No.: JAKDR-CNXTTBX00
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products
Product Name:DC POWER JACK

Part No: JAKDR-CN X TTB X 00
                                         (1)     (2)
  (1) Center Pin mode:            (2) Rating:
    1:Pin Dim A 2.0mm.             0:16V 5A
    2:Pin Dim A 2.5mm.             1: 12V 2A
    3:Pin Dim A 3.0mm


   Pitch: 4.8mm
   Number of port: 1
   Circuits: 3          RoHS compliant

    Net Weight: 2.0g
    Packing: PE BAG: 500pcs/BAG
APPLICATION:
   1.        Laptop / Projector
   2.        Camera / CD-ROM/ Modem/LCD TV/ Monitor/ Electric cars
   3.        Scanner/ External optical drives/ Hub

SPECIFICATION:
     Electrical:
            1.      Current rating: 25Amperes DC
            2.      Voltage: 16 Volts DC
     Environmental:
            1.      Operating temperature: -25℃ ~ 85℃

     MATERIAL:
            1.  Insulator Material:High Temperature plastic , UL 94V-0 Colour: Black
            2.  Terminal:Copper Alloy
            3.  Plating:
                      Contact:
                                Tin Plating 100u" min.
                                Under-plating: 50u" min. Nickel-plated all over


PRODUCT FEATURES:
         1.      DC power supply socket
