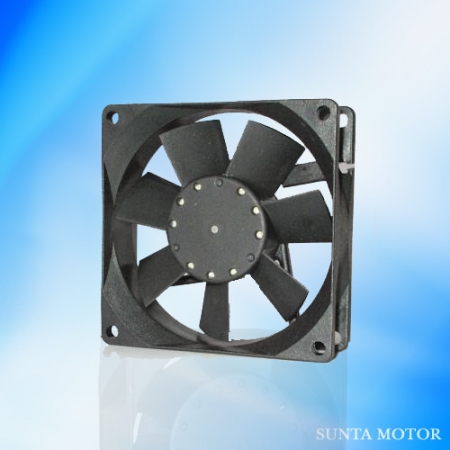

DC FAN 8025
| Item No.: | DC FAN 8025 |
Supplier Details
Country: Taiwan
State: Taiwan
City: pingtung
Address: No.95, Sinyi St., Jiouru Township
TEL: +886-8-7390684
Fax: +886-8-7390266
Online Showroom:
11 Products
MODEL NO. 8025D*-*SERIES
Size: 80*80*25mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + impendence. ( ZP )
2.polarity+over current shutdown protected. (OCP)
Frame(Houseing): PBT + 30% fiber glass black color UL94-0
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 800 VAC.50/60 HZ between lead wire (+) and frame.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within-10~56 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight :
CONNECTOR: L: lead wire
MODEL NO. RATED RATED RATED VOLTAGE MAX. AIR MAX.AIR NOISE AMP RPM RATED VDC FLOW PRESSURE VDC A RPM VDC CMM CFM MM/AQ INCH/AQ DBA 8025D1-HHBPL 12 0.38 4000 6~13.8 1.61 54 7.18 0.31 40 8025D1-HHSPL 8025D1-HBPL 0.16 3000 1.13 40 5.8 0.23 33 8025D1-HSPL 8025D1-MBPL 0.12 2500 0.910 32 4.0 0.16 28 8025D1-MSPL 8025D2HHBPL 24 0.25 4000 12~28 1.61 54 7.18 0.31 40 8025D2-HHSPL 8025D2-HBPL 0.12 3000 1.13 40 5.8 0.23 33 8025D2-HSPL 8025D4-HHBPL 48 0.16 4500 36~56 1.69 60 8.7 0.35 43 8025D4-HHSPL 8025D4-HBPL 0.08 3400 1.28 46 6.6 0.26 34 8025D4-HSPL
Size: 80*80*25mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + impendence. ( ZP )
2.polarity+over current shutdown protected. (OCP)
Frame(Houseing): PBT + 30% fiber glass black color UL94-0
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 800 VAC.50/60 HZ between lead wire (+) and frame.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within-10~56 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight :
CONNECTOR: L: lead wire
MODEL NO. RATED RATED RATED VOLTAGE MAX. AIR MAX.AIR NOISE AMP RPM RATED VDC FLOW PRESSURE VDC A RPM VDC CMM CFM MM/AQ INCH/AQ DBA 8025D1-HHBPL 12 0.38 4000 6~13.8 1.61 54 7.18 0.31 40 8025D1-HHSPL 8025D1-HBPL 0.16 3000 1.13 40 5.8 0.23 33 8025D1-HSPL 8025D1-MBPL 0.12 2500 0.910 32 4.0 0.16 28 8025D1-MSPL 8025D2HHBPL 24 0.25 4000 12~28 1.61 54 7.18 0.31 40 8025D2-HHSPL 8025D2-HBPL 0.12 3000 1.13 40 5.8 0.23 33 8025D2-HSPL 8025D4-HHBPL 48 0.16 4500 36~56 1.69 60 8.7 0.35 43 8025D4-HHSPL 8025D4-HBPL 0.08 3400 1.28 46 6.6 0.26 34 8025D4-HSPL
