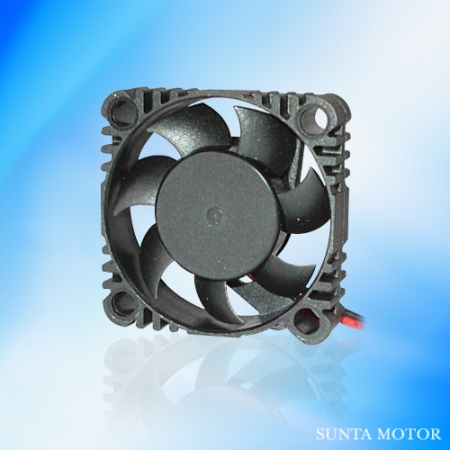

DC FAN 4010
| Item No.: | DC FAN 4010 |
Supplier Details
Country: Taiwan
State: Taiwan
City: pingtung
Address: No.95, Sinyi St., Jiouru Township
TEL: +886-8-7390684
Fax: +886-8-7390266
Online Showroom:
11 Products
MODEL NO. 4010D*-*SERIES
Size: 40*40*10mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + impendence. ( ZP )
Frame(Houseing): PBT + 30% fiber glass. Black color, UL94V-0.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within-10~56 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight :
CONNECTOR: L: lead wire
MODEL NO. RATED RATED RATED VOLTAGE MAX. AIR MAX.AIR NOISE AMP RPM RATED VDC FLOW PRESSURE VDC A RPM VDC CMM CFM MM/AQ INCH/AQ DBA 4010D05-HHBPL 5 8000 4~8 0.226 8.0 5.7 0.161 31 4010D05-HBPL 0.17 6600 0.187 6.6 4.7 0.133 28 4010D05-HSPL 4010D05-MBPL 0.12 4400 0.159 5.6 3.2 0.091 25 4010D05-MSPL 4010D1-HHBPL 12 0.13 8000 6~13.8 0.226 8.0 5.7 0.161 31 4010D1-HBPL 0.07 6600 0.187 6.6 4.7 0.133 28 4010D1-HSPL 4010D1-MBPL 0.05 4400 0.159 5.6 3.2 0.091 25 4010D1-MSPL 4010D2-HHBPL 24 8000 16~28 0.226 8.0 5.7 0.161 31 4010D2-HBPL 0.04 6600 0.187 6.6 4.7 0.133 28 4010D2-HSPL 4010D2-MBPL 0.03 4400 0.159 5.6 3.2 0.091 25 4010D2-MSPL
Size: 40*40*10mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + impendence. ( ZP )
Frame(Houseing): PBT + 30% fiber glass. Black color, UL94V-0.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within-10~56 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight :
CONNECTOR: L: lead wire
MODEL NO. RATED RATED RATED VOLTAGE MAX. AIR MAX.AIR NOISE AMP RPM RATED VDC FLOW PRESSURE VDC A RPM VDC CMM CFM MM/AQ INCH/AQ DBA 4010D05-HHBPL 5 8000 4~8 0.226 8.0 5.7 0.161 31 4010D05-HBPL 0.17 6600 0.187 6.6 4.7 0.133 28 4010D05-HSPL 4010D05-MBPL 0.12 4400 0.159 5.6 3.2 0.091 25 4010D05-MSPL 4010D1-HHBPL 12 0.13 8000 6~13.8 0.226 8.0 5.7 0.161 31 4010D1-HBPL 0.07 6600 0.187 6.6 4.7 0.133 28 4010D1-HSPL 4010D1-MBPL 0.05 4400 0.159 5.6 3.2 0.091 25 4010D1-MSPL 4010D2-HHBPL 24 8000 16~28 0.226 8.0 5.7 0.161 31 4010D2-HBPL 0.04 6600 0.187 6.6 4.7 0.133 28 4010D2-HSPL 4010D2-MBPL 0.03 4400 0.159 5.6 3.2 0.091 25 4010D2-MSPL
