DB25PIN, Header16PIN ,IDC16PIN FLAT CABLE
Item No.: | CABF-04022-G |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom:
17 Products

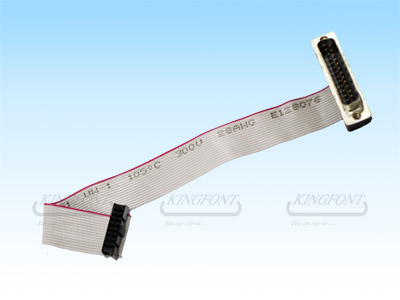

Product Name:DB25PIN+Header16PIN +IDC16PIN FLAT CABLE
Part No:CABF-04022-G
Wire Size Flat Cable IDC:
1.27mm Pitch AWG#28(Standard 0.2mm) or #30(0.17mm)
L: 205 mm RoHS compliant
Net Weight: 21g
APPLICATION:
Laptop / Computer Interface Devices / mobile phone/ Digital Devices /Communication Equipment /Aviation
SPECIFICATION:
Electrical:
Flat Cable: Voltage
Rating: 300V
Spark test: 2500V
Dielectric strength test: min 2KV in one minute
Conductor resistance: Max 237Ω /km
Insulation Resistance: 100MΩ-km
Capacity: 44 Pf/m (G-S-G)
Inductance: 1.45uH/m
Characteristic Impedance: 105Ω (G-S-G)
Propagation delay time: 4.2 ns/m
D-SUB connector:
Operation Voltage: 250 VAC Max
Current Rating: 3 Amps Max
Contact Resistance: 15 Mohms Max
Insulation Resistance: 3000 Mohms Min.
Dielectric Withstanding Voltage: 1000 VAC per minute
Header connector:
Current Rating: 1.0 Amp
Contact Resistance: 30 ohms Max at 6V DC 0.3A
Insulation Resistance: 1000 Mohms Min at 500V DC
Withstanding Voltage: 500V AC per minute
Environmental:
D-SUB connector: Operating temperature: -55℃ ~ 105℃
Header connector: Operating temperature: -40℃ ~ 105℃
MATERIAL:
Flat Cable:PVC
D-SUB connector:
Insulator: Thermal Plastic UL94V-0
Contact: Copper Alloy
Shell: Steel
Header connector:
Insulator: PBT&Class-fiber reinforced UL94V-0
Contact: Phosphor Bronze or Brass
