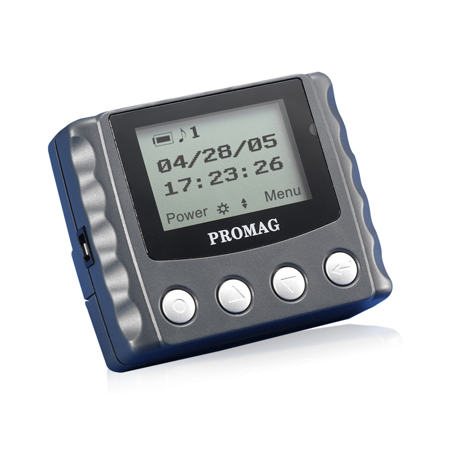

Mini Portable Mifare/Felica UID Reader/Data Collection Terminal

Introduction:
MFR120 is a Mini portable battery-powered Mifare/Felica UID reader with LCD and built-in real time clock for data  collection applications.

MFR120 is designed for Mifare/Felica card data collection anytime and anywhere without computer connectivity.

How does MFR120 work?
The data is read from MFR120 Mifare/Felica UID reader and shown on the display and kept into the memory with time stamp and downloaded to the computer.

Features:

·512K bytes memory
·Built-in Real Time Clock (RTC) and back-up capacitor
·Battery-powered portable, small footprint
·Physical reader can read 13.56MHz Mifare/Felica cards
·LCD display (101 x 67 dots)
·Auto off for power saving
·Low battery indicator
·Memory full indicator


Applications:
·Employee's Time/Attendance data collection
·Exhibition visitors' data collection
·Conference attendants data collection
·Guard tour monitoring system
·Student attendance data collection

Specifications:

Specification / Model	MFR120		MFR120U
RFID card	13.56 MHz Mifare standard:1K, 4K, Ultralight, DESfire   13.56MHz Felica standard
LCD Status indicator	Green/Red indicator LED Operation status & Battery status
LCD Display	FSTN 101 x 67 dots
Memory size	512K bytes Up to 8192 records (32 Bytes/Record)
Battery power	Single-cell Size AAA 1.5V DC Battery
Power supply from cable	DC5V, 200mA RS232 or USB interface
Interface	RS232, 19200, N, 8, 1, half-duplex	USB
Safety Certificate	FCC/CE
Dimension	L58 X W20 X H47 mm
Environment	Operation temp: 0 ～ 55 degree C Humidity: 10 ～ 90% relative

Ordering information:

·MFR120 – RS232 interface downloading
·MFR120U – USB interface downloading

※Specification is subject to change without notice.
