Data Capturer
| Item No.: | FAT810 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213
Online Showroom:
84 Products
BASIC Programmable Ethernet Data Terminal
Introduction:

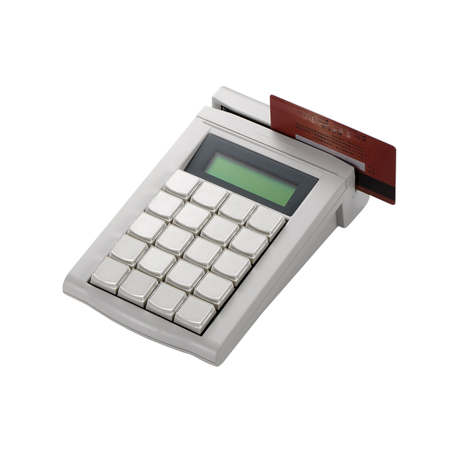

FAT810 Ethernet Data Terminal is a compact data terminal that communicates with the host over the TCP/IP network. The operator interface includes a 16 X 2 alphanumeric LCD display, a 20-Key programmable keyboard and a card reader input (a magnetic card reader or barcode card reader or RFID reader).
When the FAT810 is connected to a 10/100 BaseT Ethernet network, it functions like a TCP/IP terminal. The host server can send commands and displayable messages to FAT810 via network. The user is able to enter data to the keypad or the card reader for transmitting data to the server.
Features:
☆BASIC programmable embedded technology
☆Featuring serial printer port
☆4 I/O available for external device connection
☆Wall mount or desktop installation available
·Supports multiple languages
·Elegant compact shape for easy installation
·LCD display to show operation message and keypad key-in
·Buffer mode / non-buffer mode
·2 display ways on LCD: Digit / Asterisk for keypad key-in
Applications:
·Factory automation terminal
·Shop floor control terminal
·Real time production monitoring system
·Food court POS solution
Specifications:
Ordering information:
FAT810M – Magnetic Stripe, TK2
FAT810B – Barcode reader. LED type
FAT810F – Barcode reader, IR type
FAT810R – RFID reader by 125Khz
FAT810FL- RFID reader by 13.56MHz FeliCa type
FAT810W- RFID Reader/Writer 13.56Mhz Mifare
※ Specification is subject to change without notice.
Introduction:
FAT810 Ethernet Data Terminal is a compact data terminal that communicates with the host over the TCP/IP network. The operator interface includes a 16 X 2 alphanumeric LCD display, a 20-Key programmable keyboard and a card reader input (a magnetic card reader or barcode card reader or RFID reader).
When the FAT810 is connected to a 10/100 BaseT Ethernet network, it functions like a TCP/IP terminal. The host server can send commands and displayable messages to FAT810 via network. The user is able to enter data to the keypad or the card reader for transmitting data to the server.
Features:
☆BASIC programmable embedded technology
☆Featuring serial printer port
☆4 I/O available for external device connection
☆Wall mount or desktop installation available
·Supports multiple languages
·Elegant compact shape for easy installation
·LCD display to show operation message and keypad key-in
·Buffer mode / non-buffer mode
·2 display ways on LCD: Digit / Asterisk for keypad key-in
Applications:
·Factory automation terminal
·Shop floor control terminal
·Real time production monitoring system
·Food court POS solution
Specifications:
| LCD Display | 16*2 character LCD display to show operation message and Key-in. |
| Reading speed (Card reader) | 3-50 IPS |
| Card type | TK2-ABA, Barcode, RFID 125KHz Mifare ISO14443A 13.56MHz FeLiCa NFC ISO 18092 13.56MHz |
| Interface | 10/100 BaseT Ethernet (TCP/IP) RJ45 |
| Data transmission | Buffer mode / non-buffer mode, ASCII |
| 2 display ways on LCD | Digit / Asterisk for keypad key-in |
| Number of keypad | 20 keys programmable |
| Safety Certificate | FCC / CE |
| Power consumption | 9V |
| Dimension | W105 X L185 X H55 (mm) |
| Weight | Approx. 425 grams |
| Operation temperature | 5 ~ 55 degree C. |
| Humidity | 10 ~ 90% relative |
Ordering information:
FAT810M – Magnetic Stripe, TK2
FAT810B – Barcode reader. LED type
FAT810F – Barcode reader, IR type
FAT810R – RFID reader by 125Khz
FAT810FL- RFID reader by 13.56MHz FeliCa type
FAT810W- RFID Reader/Writer 13.56Mhz Mifare
※ Specification is subject to change without notice.
