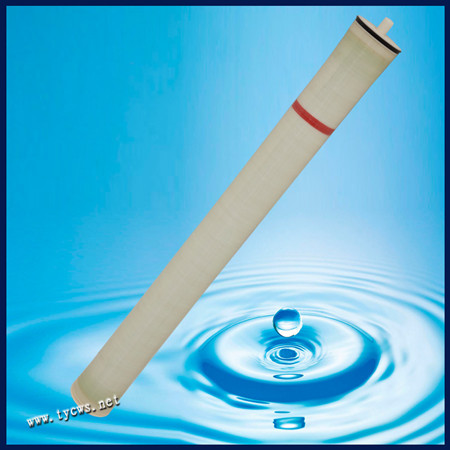

Cws-8040 RO Membrane Element for Water Treatment
| Item No.: | CWS-8040 |
Supplier Details
Country: China
State: Guangdong
City: Guangzhou
Address: Unit 3008, No.138, Helong Rd, Jiahe St, Baiyun Dec, Guangzhou, China
TEL: +0086-20-86686623
Fax: +0086-20-37415270
Online Showroom:
30 Products
RO
membrane element is mainly used in all kinds of the size of the
boiler make-up water, pure water, food processing and pharmaceutical industry
and other fields.
Production detail:
ULP series of membrane element used in salt content about 2000 parts million of surface water, groundwater, water treatment and municipal water desalination, is mainly used in all kinds of the size of the boiler make-up water, pure water, food processing and pharmaceutical in
Industry and other fields.
Testing Conditions: Testing Pressure........................ 225 psi (1.55Mpa) Temperature of Testing Solution.................. 25centigrade Concentration of Testing Solution (NaCl)........ 2000ppm pH Value of Testing Solution................. 7.5 Recovery Rate of Single Membrane Element...... 15% Operation limits and conditions Max. Working Pressure....................... 600psi (4.14Mpa) Max. Feedwater Flow..................... 75gpm (17 m3/h) (for 8040) 16gpm (3.6 m3/h) (for 4040) Max. Feedwater Temperature................... 45centigrade Max. Feedwater SDI........................ 5 Residual chlorine Concentration of Feedwater......... <0.1ppm pH Range of Feedwater during Continuous Operation...... 3~10 pH Range of Feedwater during Chemical Cleaning...... 2~12 Max. Pressure Drop of Single Membrane Element....... 15psi (0.1Mpa)
Dimensions of FO membrane element
Production detail:
ULP series of membrane element used in salt content about 2000 parts million of surface water, groundwater, water treatment and municipal water desalination, is mainly used in all kinds of the size of the boiler make-up water, pure water, food processing and pharmaceutical in
Industry and other fields.
Testing Conditions: Testing Pressure........................ 225 psi (1.55Mpa) Temperature of Testing Solution.................. 25centigrade Concentration of Testing Solution (NaCl)........ 2000ppm pH Value of Testing Solution................. 7.5 Recovery Rate of Single Membrane Element...... 15% Operation limits and conditions Max. Working Pressure....................... 600psi (4.14Mpa) Max. Feedwater Flow..................... 75gpm (17 m3/h) (for 8040) 16gpm (3.6 m3/h) (for 4040) Max. Feedwater Temperature................... 45centigrade Max. Feedwater SDI........................ 5 Residual chlorine Concentration of Feedwater......... <0.1ppm pH Range of Feedwater during Continuous Operation...... 3~10 pH Range of Feedwater during Chemical Cleaning...... 2~12 Max. Pressure Drop of Single Membrane Element....... 15psi (0.1Mpa)
Dimensions of FO membrane element
