Diamond Milling Cutters - 2-2

Diamond Milling Cutters

Item No.: 2-2
Supplier Details
Country: Taiwan
City: Taiwan
Address: No.95, Zhongzheng 2nd St., Yongkang Dist., Tainan City
TEL: +886-6-2426816
Fax: +886-6-2423818
Online Showroom: 59 Products

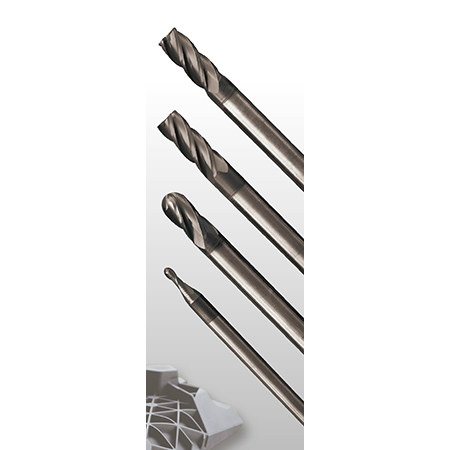

  1. ITEM: CVD Diamond Milling Cutters – Micro Diameter (End Mill, Ball Nose, Corner Radius)
  2. Co(%): 6%
  3. Flute Diameter: 0.2~2.0 mm
  4. Shank Diameter: 3.0 mm
  5. Flute Length: 0.2~6.0 mm
  6. Effective Length: 0.2~20.0 mm
  7. R Angle (Corner Radius): 0.2R、0.5R
  8. Full Length: 40~50 mm
  9. Number of Flute: 2T、4T
  10. Coating: CVD Diamond Coating
  11. Workpiece materials: plastics, aluminum alloy, iron, copper alloy, cast iron, alloy steel, stainless steel, tool steel
  12. Application: complete plunge milling, side milling, and slot milling in one process to effectively speed up production
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Diamond Milling Cutters

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
