20 x 2 VFD Mini Customer Pole Displays

Introduction:

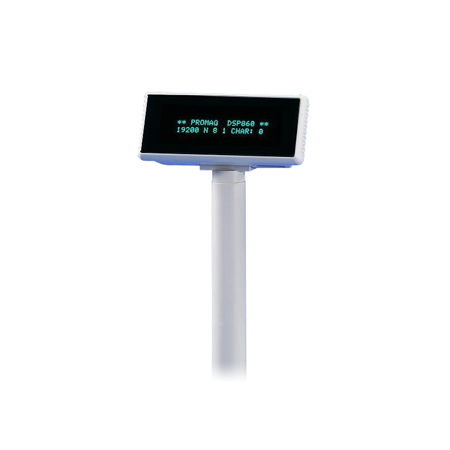

DSP860 Mini Customer Display is an artistic design POS system peripheral device. It can be used with ECR, POS system to display the purchased items, prices, amounts and changes to the customers. Also it is capable to display the advertising messages or any messages controlled by the host computer.

Features:
·20 x 2 bright font (8.8 x 3.65 mm ) VFD provides wide viewing angle, long life and high display quality
·Blue-green display color is gentle to the eyes
·Provides both Software setting and DIP Switch setting for Baudrate and Character set setting
·3 pieces of Support Poles available to provide 4 different heights installation; Low, Mid-low, Mid-high and High
·Provides good general utilities:
-User-defined messages can be downloaded
-Pre-saved 14 international character sets
-Advertising messages running

Specifications:
Display
-5 x 7 dot matrix , blue-green VFD
-Number of characters : 40 ( 20 columns x 2 lines )
-Character size : H5 x W3.5 mm
-Character type : Alphanumeric
-Display area : H14 x W99.6 mm
-Power supply : DC 12 V , 500 mA
Dimensions
-Display unit : W175 x H72 x D55 mm
-Base stand : W176 x H42 x D108 mm
-Total height : Low – 145 mm  Mid-low – 275 mm Mid-high – 390 mm  High – 520 mm
-Tilt angle : up to 30 degrees
-Horizontal rotation : 300 degrees
Interface
-RS-232 interface with baudrate selectable 600 ~ 38400
-USB version is available on request
Available versions:
DSP860B – with 3 pieces Support Poles, with Base Stand
DSP865D – with Dark Grey enclosure
* Specification is subject to change without notice
