Custom Small Desktop Server System
Item No.: | D134 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--
Online Showroom:
30 Products

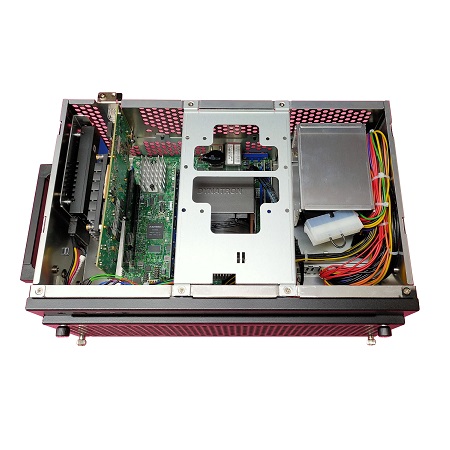

This custom server system including a custom riser card is tailored for the specification requirement from the software SI customer. It is for the entry-level and portable product segment.
Application: Network Server, Packet capture
Key Features:
Small custom desktop chassis with mini-ITX motherboard
Intel Xeon W-2200/2100 series (Socket R4) processor
Custom riser card converting PCIe x16 to PCIe x 8 slot + 2 x U.2 SSD port
2 x 3.5” or 2.5” + 3 x 2.5” drive bay, up to 4 x U.2 SSD
Dust filter sponge on front panel
Flex ATX 300W PSU
Optional rackmount kit
Spec:
Chassis Material: Aluminum + SGCC Sheet Metal
Form Factor: Non-Standard Desktop with mini-ITX MB Optional Rackmount kit
CPU: Intel Xeon W-2200/2100 series (Socket R4) processor
Power Supply: Flex ATX 300W PSU
Drive Capacity: 2 x 3.5” or 2.5” + 3 x 2.5” HDD, up to 4 x U.2 SSD
Expansion Slot: 1 x PCIe x8 Slot (Gen3), Low-Profile/Half-Length
Cooling Fan: 3 x 80*80*25mm
LED Indicator: Power on, HDD
Button: Power, Reset
Dimension(DxWxH): 210 x 332 x 109mm
Application: Network Server, Packet capture
Key Features:
Small custom desktop chassis with mini-ITX motherboard
Intel Xeon W-2200/2100 series (Socket R4) processor
Custom riser card converting PCIe x16 to PCIe x 8 slot + 2 x U.2 SSD port
2 x 3.5” or 2.5” + 3 x 2.5” drive bay, up to 4 x U.2 SSD
Dust filter sponge on front panel
Flex ATX 300W PSU
Optional rackmount kit
Spec:
Chassis Material: Aluminum + SGCC Sheet Metal
Form Factor: Non-Standard Desktop with mini-ITX MB Optional Rackmount kit
CPU: Intel Xeon W-2200/2100 series (Socket R4) processor
Power Supply: Flex ATX 300W PSU
Drive Capacity: 2 x 3.5” or 2.5” + 3 x 2.5” HDD, up to 4 x U.2 SSD
Expansion Slot: 1 x PCIe x8 Slot (Gen3), Low-Profile/Half-Length
Cooling Fan: 3 x 80*80*25mm
LED Indicator: Power on, HDD
Button: Power, Reset
Dimension(DxWxH): 210 x 332 x 109mm
