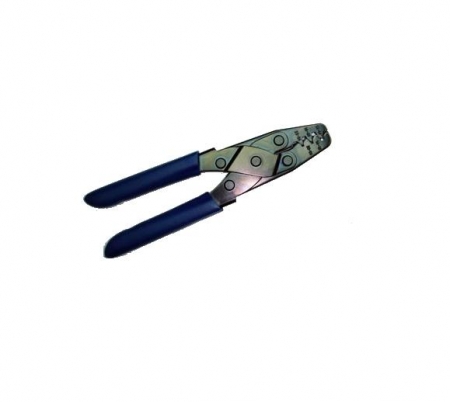

Crimp tool
| Item No.: | LY2033A |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: NO.71, MEI NING ST., TAY SHAN DISTRICT, NEW TAIPEI CITY 243, TAIWAN (R.O.C.)
TEL: +886-2-29098222
Fax: +886-2-29097202
Online Showroom:
84 Products
1.Crimps a wide variety of open barrel contacts in medium size wire ranges.
2.Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination.
3.Insulation crimps are "B" type and are produced in two cavities.: A 18-14 AWG and B 24-20 AWG.
4.Conductor crimps are "B" type and are produced in three cavities: C 16-14 AWG, D 20-18 AWG and E 24-22 AWG.
5.Item Application:Open Barrel Contacts - Medium wire range
6.Connector/Terminal Type:Variety of open barrel contacts in medium size wire ranges
7.Cable/Crimp Type:"B" type conductor & insulation crimps
8.Length:8.3"(210mm)
9.Weight:300g
2.Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination.
3.Insulation crimps are "B" type and are produced in two cavities.: A 18-14 AWG and B 24-20 AWG.
4.Conductor crimps are "B" type and are produced in three cavities: C 16-14 AWG, D 20-18 AWG and E 24-22 AWG.
5.Item Application:Open Barrel Contacts - Medium wire range
6.Connector/Terminal Type:Variety of open barrel contacts in medium size wire ranges
7.Cable/Crimp Type:"B" type conductor & insulation crimps
8.Length:8.3"(210mm)
9.Weight:300g
