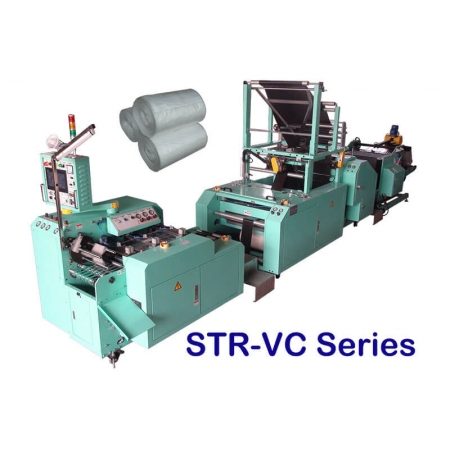

Coreless Bag On Roll Machine - STR-VC Series

Coreless Bag On Roll Machine

Item No.: STR-VC Series
Supplier Details
SHENG-FON PLASTIC MACHINE CO., LTD.
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Auto-Change Bottom sealing Perforation Garbage Bag with Dual Fold Coreless on Roll Making Machine (Servo Co-speed system)
In-line auto package possibility

MACHINE FEATURE:
  1. Easy change the bag length and tension by touch screen digital setting.
  2. Rotary Sealing and Perforation designed make fast speed and smoothly work, Tensionless sealing; Low noise running and Long life perforation knife designed.
  3. Every knife can use much more than 50000000 times, maximum up to 80000000 times.
  4. Dual fold device for "V" shape; "C" shape and "2V" shape folding.
  5. Easy change the fold shaft by 3 ways adjustment designed with power motor move.
  6. Printing mark function possibility and Customized Perforated pitch. (optional)
  7. Heavy duty lifting auto-unwind with Edge Position Control.
  8. Multi servo co-speed system, digital tension setting for fold and perforation.
  9. Products roll by single shaft winding, the roll does not convex umbilical.
  10. Automatic speed follow system, run machine just by one touch.
  11. Easy to operate and maintain full-featured surveillance system by HMI.
  12. In- line Robot working station or automatic package function possibility. (optional)

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag  Width(mm)
line × W x Dia. 		 Bag  Length/
Film thicknes		 Capacity
(Meter /min)
STR-680VC-RB3S 1 x 380~680
Roll max.110 		 450~2000 /
0.008~0.018		 Max. 120M/
line/ minute
STR-850VC-RB3S 1 x 540~850
Roll max.110 		 450~2000 /
0.008~0.018		 Max. 120M/
line/ minute
STR-1000VC-RB3S 1 x 680~1000
Roll max.110 		 450~2000 /
0.008~0.018		 Max. 120M/
line/ minute

Option:
  1. In- line mark sensor device
  2. Customized Perforated pitch
  3. In-line Robot working station
  4. Automatic package machine
  5. PC Automatic thermal code system for auto package system.
※Specifications are subject to change without notice.

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Coreless Bag On Roll Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
