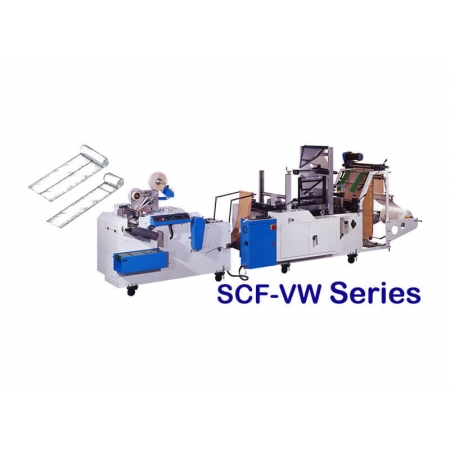

Coreless Bag On Roll Machine - SCF-VW

Coreless Bag On Roll Machine

Item No.: SCF-VW
Supplier Details
SHENG-FON PLASTIC MACHINE CO., LTD.
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Coreless Bag on Roll Making Machine

MACHINE FEATURE:
  • Double triangle folder type.
  • Machine stops automatically for breakage, shortage or missed film registration.
  • Rewind driven by servo & PLC control systems combined with torque & speed micro adjusted systems.
  • Roll tear-off by double roll tearing system.
  • Auto-labeling system available as an option.
  • Max. Output: 120pcs/min.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(max.) Thickness of
Film(mm)		 Capacity
(cycle/min.)		 Winding
Width
(mm.)		 Rewinder Dia.
(mm.)		 Power
Required		 Machine Size
SERVO TYPE SCF-280V 280(W)x1000(L) 0.08~0.1 30~140 50~280 ø30~ø90 3.7KW 4.5x1.2x1.55
SCF-500V 450(W)x1000(L) 75~400 4.5x1.35x1.55
SCF-800V 760(W)x1200(L) 75~500 5.5KW 5.5x1.5x1.8
SCF-1020V 960(W)x1200(L) 30~120 6.0KW 5.5x1.65x2.2
  • Specifications are subject to change without notice.

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Coreless Bag On Roll Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
