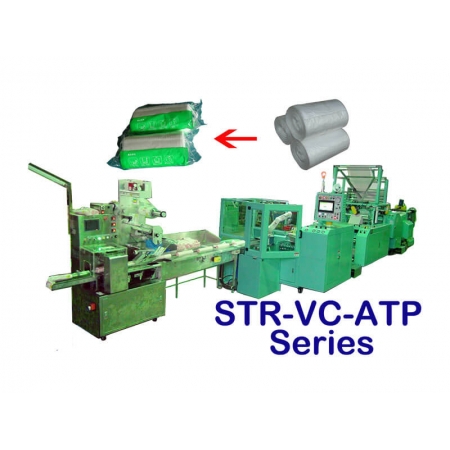

Coreless Bag On Roll Machine - STR-VC-ATP Series

Coreless Bag On Roll Machine

Item No.: STR-VC-ATP Series
Supplier Details
SHENG-FON PLASTIC MACHINE CO., LTD.
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Bottom sealing Perforation Garbage Bag Coreless Fold on Roll Making Machine with In-line auto packaging system (Rotary sealing and Perforating with Servo Co-speed system)

MACHINE FEATURE:
  1. Simple alternation to bag length & tension by one touch on digital screen.
  2. Rotary Sealing and Perforation designed make fast speed and smoothly work, Tensionless sealing; Low noise running and Long life perforation knife designed.
  3. Every knife can use much more than 50000000 times, maximum up to 80000000 times.
  4. Dual fold device for "V" shape; "C" shape and "2V" shape folding.
  5. Easy change for folding type and adoptation of 3-axis transmissive electric motor for fast and energetic saving.
  6. Printing mark function possibility and Customized Perforated pitch.(optional)
  7. Heavy duty lifting auto-unwind with Edge Position Control.
  8. Multi servo co-speed system, digital tension setting for fold and perforation.
  9. Products roll by single shaft winding, the roll does not convex umbilical.
  10. Automatic speed follow system, run machine just by one touch.
  11. Easy to operate and maintain full-featured surveillance system by HMI.
  12. In- line Robot working station and automatic packaging machine, save time & money.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag  Width(mm)
line × W x Dia. 		 Bag  Length/
Film thicknes (mm) 		 Capacity
(Meter /min)
STR-680VC-RB3S-ATP 1 x 380~680
Roll max.110 		 450~2000 /
0.008~0.018		 Max. 120M/
line/ minute
STR-850VC-RB3S-ATP 1 x 540~850
Roll max.110 		 450~2000 /
0.008~0.018		 Max. 120M/
line/ minute
STR-1000VC-RB3S 1 x 680~1000
Roll max.110 		 450~2000 /
0.008~0.018		 Max. 120M/
line/ minute

Option:
  1. In- line mark sensor device
  2. Customized Perforated pitch
  3. PC Automatic thermal code system for auto package system.
※Specifications are subject to change without notice.
