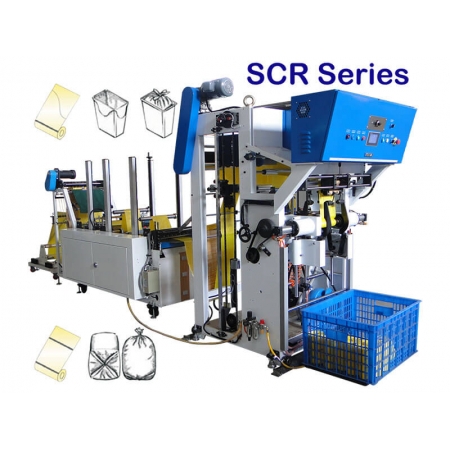

Coreless And Core Bag On Roll Machine - SCR Series

Coreless And Core Bag On Roll Machine

Item No.: SCR Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Core and Coreless S-Die Cut Bottom Sealing Or Star Sealing Bag on Roll Making Machine

MACHINE FEATURE:
  • Maximum line speed 60M/minute.
  • Servo driven to out-feed system, the film by tensionless sealing.
  • No film or break bag auto check to stop.
  • Rewind device is controlled by speed system, rewind speed will follow automatically.
  • Rewind auto change system, bag making will not stop.
  • P.L.C. and cutting programmed are online controlled; H.M.I. value setting.
  • Simultaneously optional of core and coreless rewind device.
  • Simultaneously optional of S-die cut and bottom seal perforation device.

SPECIFICATIONS:   P.S. Customization could be available.
Model Making Bag (mm) Making bag speed
(bags/min)
Line speed
Air supply required Heater Cap.
(KW)
Motor Cap.
(KW)(HP)
Power Req
(KW).
Machine Size
Sealing & Cutting Coreless Rewind Core Rewind Core size Dia.*L L. W. H.
Width Length Thickness Width Dia. Width Dia.
SCR-500VWS 50~350 100~1900 0.08~0.15 75~400 Max.130 220~475 Max.200 D35-D55*L220-475 (20-120/Min)
60/Min.
0.5~0.7Mpa
300L/min
Total:1.4KW Servo motor:2.9KW
AC motor:4HP+Gear box
7.5KW 5.5M 2.0M 2.2M

Optional Equipment
  1. Air Compressor: 3HP;
  2. Air Shaft
※Specifications are subject to change without notice.
