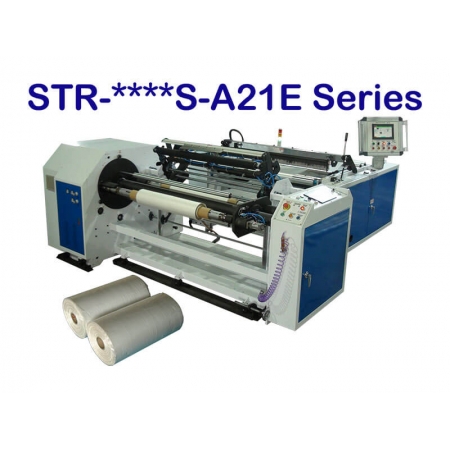

Core Bag On Roll Machine

Item No.:

STR-****S-A21E Series

Supplier Details

SHENG-FON PLASTIC MACHINE CO., LTD.

Country: Taiwan

City: Chiayi City600

Address: No. 24, Bo'ai New Residential Quarter, West Dist.

TEL: +886-5-2379088

Fax: +886-5-2375004

Online Showroom: 44 Products

Product Details Supplier Profile

Auto-Change Bag on Roll Making Machine with Paper Core Device & Servo Shuttle system ( in-line extruder possibility)

MACHINE FEATURE:

Up to Max. 220mm of products roll diameter.
One touch screen digital setting make the change of the bag length and tension easily.
Quick & smooth operation can be reahed by shuttle type Sealing and Perforation designe.
Tensionless sealing; Low noise running and easy change perforation knife designed.
The tooth pitch of every knife can be altered in accordance with user require.
Printing mark function possibility.(optional)
Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
Automatic speed follow by in-feed dancing device of IN-LINE type.
HMI survellance sytem for operation and maintenance.
Automatic rewind machine with different core size.
Micro tension system for thin film(min. 8 micrometer) and very easy to tear.
The possibility of heavy duty film. Up to 240micro bottom sealing.

SPECIFICATIONS: P.S. Customization could be available.

Model		Bag Width (mm) line × W x Dia.	Bag Length / Film thickness	Capacity (Meter / min)	Servo power/ Servo quantity	Heater	Power Required	Air supply Required	Machine Size L × W × H (M)	Packing Size L × W × H (M)	N.W. / G.W. (Kgs)
OFF- LINE	STR- 750S- A21E	W300~750 Roll max.220	220~2000 / 0.008~012	Max. 100M/ line/ minute	11KW/ 6 Servo	M3.5kw	13.5KW	0.6 Mpa 400ml / min	6.8x2.61x1.7	R-1.6×2.7×1.7 M-2.0x1.8x1.5 U-1.7x1.4x1.5	4400 / 5300
	STR- 1000S- A21E	W450~1000 Roll max.220	220~2000 / 0.008~012	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.0kw	15.5KW	0.6 Mpa 400ml / min	6.8x2.86x1.7	R-1.6×2.9×1.7 M-2.0x2.0x1.5 U-1.7x1.6x1.5	4900 / 6000
	STR- 1250S- A21E	W600~1250 Roll max.220	220~2000 / 0.008~012	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.5kw	16KW	0.6 Mpa 400ml / min	6.8x3.06x1.7	R-1.6×3.1×1.7 M-2.0x2.2x1.5 U-1.7x1.8x1.5	5700 / 7000
	STR- 1500S- A21E	W700~1500 Roll max.220	220~2500 / 0.010~012	Max. 90M/ line/ minute	13.5KW/ 6 Servo	M5.0kw	17.5KW	0.6 Mpa 400ml / min	6.8x3.331x1.7	R-1.6×3.4×1.7 M-2.0x2.6x1.5 U-1.7x2.2x1.5	6300 / 7800
	STR- 1750S- A21E	W850~1700 Roll max.220	220~2500 / 0.010~012	Max. 80M/ line/ minute	13.5KW/ 6 Servo	M5.5kw	18.5KW	0.6 Mpa 400ml / min	7.8x3.56x1.7	R-1.6×3.7×1.7 M-2.0x2.9x1.5 U-1.7x2.5x1.5	7400 / 9200
IN- LINE	STR- 750Si- A21E	W300~750 Roll max.220	220~2000 / 0.008~012	Max. 100M/ line/ minute	11KW/ 6 Servo	M3.5kw	13KW	0.6 Mpa 400ml / min	5.1x2.66x1.7	R-1.6×2.7×1.7 M-2.0x1.8x1.5	4100 / 5000
	STR- 1000Si- A21E	W450~1000 Roll max.220	220~2000 / 0.008~012	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.0kw	15KW	0.6 Mpa 400ml / min	5.1x2.86x1.7	R-1.6×3.1×1.7 M-2.0x2.2x1.5	4600 / 5650
	STR- 1250Si- A21E	W600~1250 Roll max.220	220~2000 / 0.008~012	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.5kw	15.5KW	0.6 Mpa 400ml / min	5.1x3.06x1.7	R-1.6×3.1×1.7 M-2.0x2.2x1.5	5250 / 6600
	STR- 1500Si- A21E	W700~1500 Roll max.220	220~2500 / 0.010~012	Max. 90M/ line/ minute	13.5KW/ 6 Servo	M5.0kw	17.5KW	0.6 Mpa 400ml / min	5.1x3.31x1.7	R-1.6×3.4×1.7 M-2.0x2.6x1.5	5900 / 7300
	STR- 1750Si- A21E	W850~1700 Roll max.220	220~2500 / 0.010~012	Max. 80M/ line/ minute	13.5KW/ 6 Servo	M5.5kw	18KW	0.6 Mpa 400ml / min	5.1x3.56x1.7	R-1.6×3.7×1.7 M-2.0x2.9x1.5	6900 / 8100

ps.: For packing size--R=Rewind machine; S=Slit sealing device; M= Main sealing and perforation machine; U=Unwind device.

Specifications are subject to change without notice.
