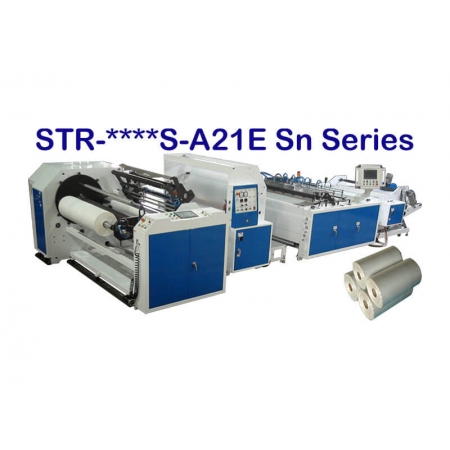

Core Bag On Roll Machine
| Item No.: | STR- ****S-A21E-Sn Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Auto-Change Multi-Line Bag on Roll Making Machine with Paper Core, Slit Sealing Device and Servo Shuttle system ( in-line extruder possibility)
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
ps.: For packing size--R=Rewind machine; S=Slit sealing device; M= Main sealing and perforation machine; U=Unwind device.
MACHINE FEATURE:
- One jumbo material roll converted into multi-line products roll by slit sealing device.
- Products roll diameter can be up to Max. 450mm(Standard diameter is Max. 220mm)
- Easy change for the bag length and tension by touch screen digital setting.
- Shuttle type Sealing and Perforation designe make operation fast and smoothly.
- Tensionless sealing; Low noise running and easy change design of perforation knife.
- Every knife can be changed the tooth knife pitch according to user.
- Printing mark function possibility.(optional)
- Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
- Automatic speed follow by in-feed dancing device of IN-LINE type.
- Easy to operate and maintain full-featured surveillance system by HMI.
- Easy change designe for different core size of automatic rewind machine.
- The micro-tension system can easily tear off the min.8 micronmeter of film.
- Heavy duty film make possibly. The total thickness for bottom sealing up to 240micro.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Bag Width (mm) line × W x Dia. |
Bag Length / Film thickness |
Capacity (Meter / min) |
Servo power/ Servo quantity |
Heater | Power Required |
Air supply Required |
Machine Size L × W × H (M) |
Packing Size L × W × H (M) |
N.W. / G.W. (Kgs) |
|
| OFF- LINE |
STR- 750S- A21E-S2 |
1~3 x 720~240 Roll max.220 Min. width 150 |
220~1200 / 0.008~012 |
Max. 100M/ line/ minute |
11KW/ 6 Servo |
M3.5 kw +S1.6kw |
15KW | 0.6 Mpa 400ml/ min |
7.8x2.61x1.7 | R-1.6×2.7×1.7 S-1.5x1.6x1.9 M-2.0x1.8x1.5 U-1.7x1.4x1.5 |
5000 / 6000 |
| STR- 1000S- A21E-S3 |
1~4 x 960~240 Roll max.220 Min. width 150 |
220~1200 / 0.008~012 |
Max. 100M/ line/ minute |
12KW/ 6 Servo |
M4.0 kw +S2.4kw |
17KW | 0.6 Mpa 400ml/ min |
7.8x2.86x1.7 | R-1.6×2.9×1.7 S-1.5x1.8x1.9 M-2.0x2.0x1.5 U-1.7x1.6x1.5 |
5600 / 6800 |
|
| STR- 1250S- A21E-S4 |
1~5 x1200~240 Roll max.220 Min. width 150 |
220~1400 / 0.008~012 |
Max. 100M/ line/ minute |
12KW/ 6 Servo |
M4.5 kw +S3.2kw |
20KW | 0.6 Mpa 400ml/ min |
7.8x3.06x1.7 | R-1.6×3.1×1.7 S-1.5x2.0x1.9 M-2.0x2.2x1.5 U-1.7x1.8x1.5 |
6500 / 7900 |
|
| STR- 1500S- A21E-S5 |
1~6 x1440~240 Roll max.220 Min. width 150 |
220~1400 / 0.008~012 |
Max. 90M/ line/ minute |
13.5KW/ 6 Servo |
M5.0 kw +S4.0kw |
24KW | 0.6 Mpa 400ml/ min |
7.8x3.331x1.7 | R-1.6×3.7×1.7 S-1.5x2.4x1.9 M-2.0x2.6x1.5 U-1.7x2.2x1.5 |
7200 / 8800 |
|
| STR- 1750S- A21E-S6 |
1~7 x1680~240 Roll max.220 Min. width 150 |
220~1400 / 0.008~012 |
Max. 80M/ line/ minute |
13.5KW/ 6 Servo |
M5.5 kw +S4.8kw |
25KW | 0.6 Mpa 400ml/ min |
7.8x3.56x1.7 | R-1.6×3.7×1.7 S-1.5x2.7x1.9 M-2.0x2.9x1.5 U-1.7x2.5x1.5 |
8400 / 10300 |
|
| IN- LINE |
STR- 750Si- A21E-S2 |
1~3 x 720~240 Roll max.220 Min. width 150 |
220~1200 / 0.008~012 |
Max. 100M/ line/ minute |
11KW/ 6 Servo |
M3.5 kw +S1.6kw |
14.5KW | 0.6 Mpa 400ml/ min |
6.1x2.66x1.7 | R-1.6×2.7×1.7 S-1.5x1.6x1.9 M-2.0x1.8x1.5 |
4700 / 7500 |
| STR- 1000Si- A21E-S3 |
1~4 x 960~240 Roll max.220 Min. width 150 |
220~1200 / 0.008~012 |
Max. 100M/ line/ minute |
12.5KW/ 6 Servo |
M4.0 kw +S2.4kw |
16.5KW | 0.6 Mpa 400ml/ min |
6.1x2.86x1.7 | R-1.6×2.9×1.7 S-1.5x1.8x1.9 M-2.0x2.0x1.5 |
5300 / 6500 |
|
| STR- 1250Si- A21E-S4 |
1~5 x1200~240 Roll max.220 Min. width 150 |
220~1400 / 0.008~012 |
Max. 100M/ line/ minute |
12.5KW/ 6 Servo |
M4.5 kw +S3.2kw |
19.5KW | 0.6 Mpa 400ml/ min |
6.1×3.06×1.7 | R-1.6×3.1×1.7 S-1.5x2.0x1.9 M-2.0x2.2x1.5 |
6150 / 7500 |
|
| STR- 1500Si- A21E-S5 |
1~6 x1440~240 Roll max.220 Min. width 150 |
220~1400 / 0.008~012 |
Max. 90M/ line/ minute |
13.5KW/ 6 Servo |
M5.0 kw +S4.0kw |
23.5KW | 0.6 Mpa 400ml/ min |
6.1×3.31×1.7 | R-1.6×3.4×1.7 S-1.5x2.4x1.9 M-2.0x2.6x1.5 |
6750 / 8300 |
|
| STR- 1750Si- A21E-S6 |
1~7 x1680~240 Roll max.220 Min. width 150 |
220~1400 / 0.008~012 |
Max. 80M/ line/ minute |
13.5KW/ 6 Servo |
M5.5 kw +S4.8kw |
24.5KW | 0.6 Mpa 400ml/ min |
6.1×3.56×1.7 | R-1.6×3.7×1.7 S-1.5x2.7x1.9 M-2.0x2.9x1.5 |
7900 / 9700 |
|
ps.: For packing size--R=Rewind machine; S=Slit sealing device; M= Main sealing and perforation machine; U=Unwind device.
- Specifications are subject to change without notice.
