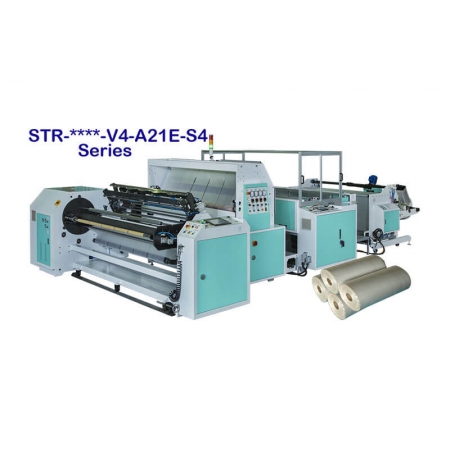

Core Bag On Roll Machine
| Item No.: | STR- ****V4-A21E-S4 Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Auto-Change Multi-Line Bag on Roll Making Machine with Paper Core, Slit Sealing Device and Servo Co-speed Fly Cut system ( in-line extruder possibility)
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
ps.: For packing size--R=Rewind machine; S=Slit sealing device; M= Main sealing and perforation machine; U=Unwind device.
MACHINE FEATURE:
- Multi-line products roll by from One jumbo material roll and slit sealing device.
- Products roll diameter can up to Max. 450mm(Standard diameter is Max. 220mm)
- Easy change the bag length and tension by touch screen digital setting.
- Rotary Sealing and Perforation designe make the process in fast speed and smoothy, Tensionless sealing; Low noise running and Long life perforation knife designed.
- Every knife can use much more than 20,000,000 times, maximum up to 30,000,000 times.
- Printing mark function possibility and Customized Perforated pitch.(optional)
- Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
- Automatic speed follow by in-feed dancing device of IN-LINE type.
- Easy to operate and maintain full-featured surveillance system by HMI.
- Easy change designed for different core size of automatic rewind machine.
- Micro tension system for thin film(min. 6 micrometer) and very easy to tear.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Bag Width (mm) line × W x Dia. |
Bag Length/ Film thickness |
Capacity (Meter /min) |
Servo power/ Servo quantity |
Heater | Power Required |
Air supply Required |
Machine Size L × W × H (M) |
Packing Size L × W × H (M) |
N.W. / G.W. (Kgs) |
|
| OFF- LINE |
STR- 800V4 - A21E-S2 |
1~3 x 750~250 Roll max.220 Min. width 150 |
220~1200 / 0.006~0.025 |
Max. 100M/ line/ minute |
15KW/ 6 Servo |
M3.5 kw +S3.2kw |
19KW | 0.6 Mpa 400ml / min |
7.8x2.66x1.7 | R-1.6×2.7×1.7 S-1.5x1.6x1.9 M-2.0x1.8x1.5 U-1.7x1.4x1.5 |
5000 / 6000 |
| STR- 1000V4- A21E-S3 |
1~4 x 940~235 Roll max.220 Min. width 150 |
220~1200 / 0.006~0.025 |
Max. 100M/ line/ minute |
16KW/ 6 Servo |
M4.0 kw +S3.2kw |
21KW | 0.6 Mpa 400ml / min |
7.8x2.86x1.7 | R-1.6×2.9×1.7 S-1.5x1.8x1.9 M-2.0x2.0x1.5 U-1.7x1.6x1.5 |
5800 / 6800 |
|
| STR- 1200V4- A21E-S4 |
1~5 x 1150~230 Roll max.220 Min. width 150 |
220~1400 / 0.006~0.025 |
Max. 100M/ line/ minute |
17KW/ 6 Servo |
M4.5 kw +S3.2kw |
23KW | 0.6 Mpa 400ml / min |
7.8x3.06x1.7 | R-1.6×3.1×1.7 S-1.5x2.0x1.9 M-2.0x2.2x1.5 U-1.7x1.8x1.5 |
6500 / 7900 |
|
| IN- LINE |
STR- 800V4i- A21E-S2 |
1~3 x 750~250 Roll max.220 Min. width 150 |
220~1200 / 0.006~0.025 |
Max. 100M/ line/ minute |
15KW/ 6 Servo |
M3.5 kw +S3.2kw |
19KW | 0.6 Mpa 400ml / min |
6.1x2.66x1.7 | R-1.6×2.7×1.7 S-1.5x1.6x1.9 M-2.0x1.8x1.5 |
4700 / 5700 |
| STR- 1000V4i- A21E-S3 |
1~4 x 940~235 Roll max.220 Min. width 150 |
220~1200 / 0.006~0.025 |
Max. 100M/ line/ minute |
16KW/ 6 Servo |
M4.0 kw +S3.2kw |
21KW | 0.6 Mpa 400ml / min |
6.1x2.86x1.7 | R-1.6×2.9×1.7 S-1.5x1.8x1.9 M-2.0x2.0x1.5 |
5300 / 6500 |
|
| STR- 1200V4i- A21E-S4 |
1~5 x 1150~230 Roll max.220 Min. width 150 |
220~1400 / 0.006~0.025 |
Max. 100M/ line/ minute |
17KW/ 6 Servo |
M4.5 kw +S3.2kw |
23KW | 0.6 Mpa 400ml / min |
6.1×3.06×1.7 | R-1.6×2.9×1.7 S-1.5x1.8x1.9 M-2.0x2.0x1.5 |
6150 / 7500 |
|
ps.: For packing size--R=Rewind machine; S=Slit sealing device; M= Main sealing and perforation machine; U=Unwind device.
- Specifications are subject to change without notice.
