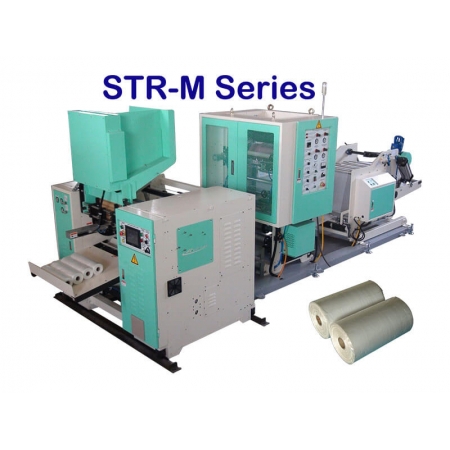

Core Bag On Roll Machine - STR-M Series

Core Bag On Roll Machine

Item No.: STR-M Series
Supplier Details
SHENG-FON PLASTIC MACHINE CO., LTD.
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Auto-Change Core Bag on Roll Making Machine (Off- line type) --- Mechanical Co-speed system

MACHINE FEATURE:
  1. Rotary Sealing and Perforation designed make fast speed and smoothly work, Low tension sealing; Low noise running and Long life perforation knife designed.
  2. Every knife can use much more than 50000000 times, maximum up to 80000000 times.
  3. Customized Perforated pitch.(optional)
  4. Mechanical bag length change device, one size one bag length device.
  5. Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
  6. Automatic speed follow by in-feed dancing device of IN-LINE type.
  7. Easy to operate and maintain full-featured surveillance system by Rewind HMI.
  8. Automatic winder designed for easy adjustment of tube shaft specifications.
  9. Micro tension system for thin film(min. 6 micrometer) and very easy to tear.
  10. Auto Unloading when products roll at full  and motor edge position adjust. (optional)
  11. Two line rewind with hot slitting system for double products possibility. (extra type)
  12. Two line rewind with two line unwind  for double products possibility. (extra type)
SPECIFICATIONS:   P.S. Customization could be available.
Model Bag  Width(mm)
line × W x Dia. 		 Bag  Length/
Film thicknes		 Capacity
(Meter /min)
OFF-
LINE		 STR-400M-V2-A21 1 x 230~375
Roll max.130 		 300~600 /
0.005~0.018		 Max. 100M/
line/ minute
STR-500M-V2-A21 1 x 330~475
Roll max.130		 300~600 /
0.005~0.018		 Max. 100M/
line/ minute
STR2-800M-V2-A22 2 x 220~350
Roll max.130		 300~600 /
0.005~0.018		 Max. 100M/
line/ minute
IN-
LINE		 STR-400Mi-A21 1 x 230~375
Roll max.130		 300~600 /
0.005~0.018		 Max. 100M/
line/ minute
STR-500Mi-A21 1 x 330~475
Roll max.130		 300~600 /
0.005~0.018		 Max. 100M/
line/ minute
STR2-800Mi-A22 2 x 220~350
Roll max.130		 300~600 /
0.005~0.018		 Max. 100M/
line/ minute
  • Specifications are subject to change without notice.
