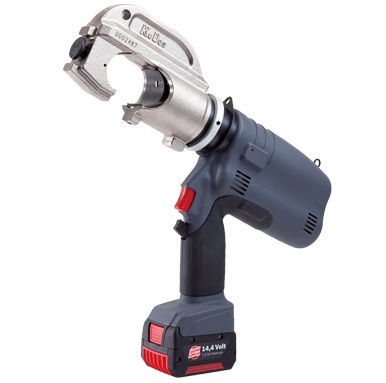

Cordless hydraulic crimping machine
| Item No.: | LEC-32 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: No. 55, Singjheng St.,Xindian District, New Taipei City 23147, Taiwan（R.O.C.）
TEL: +886-2-29109790
Fax: +886-2-29151202
Online Showroom:
5 Products
Introduction:
Applicable Alcoa, Burndy, T & B, Klauke, Cembre and Blakburn and all 12 t U- crimping dies .
Terminals suitable wall thickness less than DIN46235 type of cable connector. Specification
• Height : 353mm
• Weight 5.8kg ( without batteries)
• Power : 14.4V DC motors
• Input voltage : 220V AC single phase
• Input Frequency : 50-60Hz
• Input Current : 21.75VA
• Oil Capacity : 85cc Crimping capacity
• C -type head open open : 32mm
• Maximum output : 12.7ton / 125N
• Maximum Crimping capacity : 400mm² copper terminals
Battery Type
• Battery : Makita batteries
• Capacity : 3.0Ah
• Voltage : 14.4V
• Form: NiMH batteries / lithium battery
Charging time: 40 minutes
Applicable Alcoa, Burndy, T & B, Klauke, Cembre and Blakburn and all 12 t U- crimping dies .
Terminals suitable wall thickness less than DIN46235 type of cable connector. Specification
• Height : 353mm
• Weight 5.8kg ( without batteries)
• Power : 14.4V DC motors
• Input voltage : 220V AC single phase
• Input Frequency : 50-60Hz
• Input Current : 21.75VA
• Oil Capacity : 85cc Crimping capacity
• C -type head open open : 32mm
• Maximum output : 12.7ton / 125N
• Maximum Crimping capacity : 400mm² copper terminals
Battery Type
• Battery : Makita batteries
• Capacity : 3.0Ah
• Voltage : 14.4V
• Form: NiMH batteries / lithium battery
Charging time: 40 minutes
