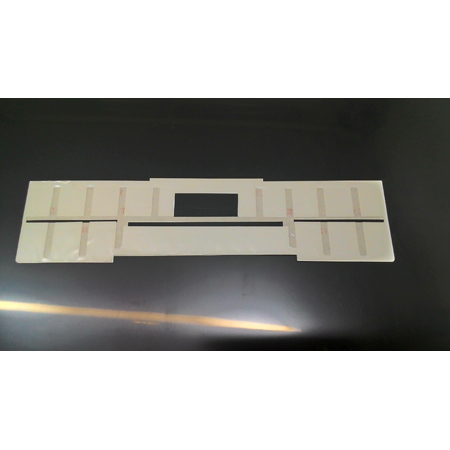

Backlight Modules - RLO Control Panel back light module Model 1

Backlight Modules

Item No.: RLO Control Panel back light module Model 1
Supplier Details
Raising Light Optronics corps
Country: Taiwan
City: Taichung City 41353
Address: No.56, Wugong 1st., wufeng Dist.
TEL: +886-4-23330778
Fax: +886-4-23396565
Online Showroom: 32 Products
Control Panel LGF
  1. Material: optical grade PC, white reflector, light resistance of black foam, LED FPC module.
  2. Process: After the mold is heated pressure stamped directly on the PC raw material, the structure will be duplicated on PC surface, forming a network microstructure.
  3. Size: irregular rectangular, hollow inside and then paste the black foam light block design.
  4. Thickness: white reflective sheet thickness 0.1mm, double-sided adhesive thickness of 0.05mm, PC thickness of 0.4mm, 0.55mm thickness combined total.
  5. Application: Backlight module in Display interface of electric amusement machine or gambling machine.
  6. Features: Single-block 2 color LED design, to follow the program set different colors evenly light efficiency, reach inform the user of the different situations.
