Control box CB09
Item No.: | CB09 |
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung City
Address: No.37, Jingke 5th Rd., Wunshan Village., Nantun Dist., Taichung City 408, Taiwan (R.O.C.)
TEL: +886-4-23596262
Fax: +886-4-23595998
Online Showroom:
7 Products

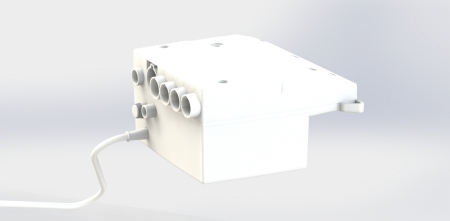

CB09 is a low voltage operated controller for max. 4 actuators. A series of built-in safety and other options makes it ideal for vast medical and industrial applications.
Features:
- Max. for 4 actuators. Actuator type: LA31, LA32, LA33 (with DIN Plug)
- Mains voltage: 220-240/ 100-120V AC; 50-60Hz
- Compact high power toroidal transformer ensures low power consumption and low electromagnetic emission
- Electronic overload protection (EOP) common for all channels
- DIN socket for handset HB8X, HB3X, ACP or FS
- Exchangeable mains cable
- Duty cycle: Max. 10% or 6 min./ 1 hour in continuous use
- Ambient temperature: +5ºC to +40ºC
- Protection class: IP54
- Color: Black
- Can be mounted with BA16
- The Battery has a Warning for low Voltage
Options:
- Battery back-up: battery sets (BA16)
- Class 1: earth connection
- Mains fuse can be replaced from the out-side
- Protection class: IP66
- T-cable device for operating two handsets simultaneously
- Color: Gray White
Features:
- Max. for 4 actuators. Actuator type: LA31, LA32, LA33 (with DIN Plug)
- Mains voltage: 220-240/ 100-120V AC; 50-60Hz
- Compact high power toroidal transformer ensures low power consumption and low electromagnetic emission
- Electronic overload protection (EOP) common for all channels
- DIN socket for handset HB8X, HB3X, ACP or FS
- Exchangeable mains cable
- Duty cycle: Max. 10% or 6 min./ 1 hour in continuous use
- Ambient temperature: +5ºC to +40ºC
- Protection class: IP54
- Color: Black
- Can be mounted with BA16
- The Battery has a Warning for low Voltage
Options:
- Battery back-up: battery sets (BA16)
- Class 1: earth connection
- Mains fuse can be replaced from the out-side
- Protection class: IP66
- T-cable device for operating two handsets simultaneously
- Color: Gray White
