Concrete Chainsaw
| Item No.: | CS11 |
Supplier Details
Country: Taiwan
City: Yunlin County 640
Address: No. 2, Kejia Rd., Douliu City
TEL: +886-5-5518689
Fax: +886-5-5518635
Online Showroom:
74 Products

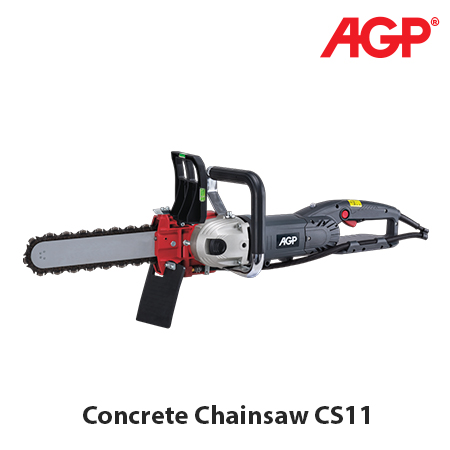

Concrete Chainsaw CS11
CS11
INTRODUCTION
This tool is specifically designed for wet cutting of concrete, masonry and similar materials. It must not be used for cutting wood or felling trees. Although it is similar in appearance to a wood chain saw, it has significant differences in principles and techniques which will be detailed throughout this instruction manual. . This chain saw must not be converted or modified for any other use, other than as specified in these operating instructions. The user shall be liable for damages and accidents due to incorrect use.
INSTALLING THE GUIDE BAR AND CHAIN
1. With the 2 side cover nuts removed and the side cover removed, slacken the tension adjustor by turning anticlockwise.
2. Slip the guide bar into position over the studs with the hole engaged with the adjustor pin. (the bar is symmetrical and may be installed with either side up)
3. Place the chain around the drive sprocket first, ensuring that the drive links engage the sprocket teeth.
4. Starting from the drive sprocket end, loop the chain around the guide bar nose sprocket, ensuring that the drive links engage with the guide bar groove and remain engaged with the sprockets.
5. Place the side cover in position and thread on the 2 side cover nuts, leaving them finger tight only (to allow the tension adjustor to be adjusted). They will be tightened fully after tensioning according to the instructions below.
Concrete chainsaw with single phase 3200 W motor and up to 300 mm plunge cutting depth. Excellent for precise corner cut outs with no overcuts.
Max. Capacity:300 mm Depth of Cut
Type:Wet only
CS11
INTRODUCTION
This tool is specifically designed for wet cutting of concrete, masonry and similar materials. It must not be used for cutting wood or felling trees. Although it is similar in appearance to a wood chain saw, it has significant differences in principles and techniques which will be detailed throughout this instruction manual. . This chain saw must not be converted or modified for any other use, other than as specified in these operating instructions. The user shall be liable for damages and accidents due to incorrect use.
INSTALLING THE GUIDE BAR AND CHAIN
1. With the 2 side cover nuts removed and the side cover removed, slacken the tension adjustor by turning anticlockwise.
2. Slip the guide bar into position over the studs with the hole engaged with the adjustor pin. (the bar is symmetrical and may be installed with either side up)
3. Place the chain around the drive sprocket first, ensuring that the drive links engage the sprocket teeth.
4. Starting from the drive sprocket end, loop the chain around the guide bar nose sprocket, ensuring that the drive links engage with the guide bar groove and remain engaged with the sprockets.
5. Place the side cover in position and thread on the 2 side cover nuts, leaving them finger tight only (to allow the tension adjustor to be adjusted). They will be tightened fully after tensioning according to the instructions below.
Concrete chainsaw with single phase 3200 W motor and up to 300 mm plunge cutting depth. Excellent for precise corner cut outs with no overcuts.
- LED Indicator Indicates load conditions
(electronic & thermal protection). - Bumper Spike for increased leverage.
- Flexible Splash Flap helps contain slurry.
- Dual plane horizontal and vertical spirit levels for precise alignment.
- Wide base for setting tool down and adjusting.
- Hall Effect Switch is completely waterproof and dustproof.
Max. Capacity:300 mm Depth of Cut
Type:Wet only
