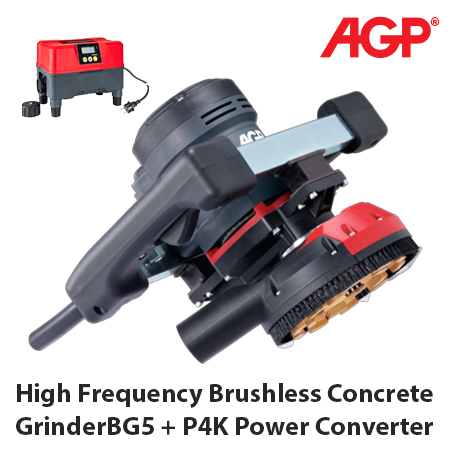

High Frequency Brushless Concrete Grinder BG5 + P4K Power Converter
BG5
INTRODUCTION
This machine is a special, high-frequency, PMSM power tool (permanent magnet synchronous motor). It must be only be used with its special power converter, which acts as a motor controller.
The converter also provides variable speed control.
Connection between the converter and motor is made by a motor coupling cable with special plug.
The power converter has overload, thermal, under voltage and over voltage protection.
RECOMMENDED ACCESSORIES
This machine may only be used with diamond cup wheels of 125mm diameter with 22.23mm (7/8") arbor
hole or with M14 female thread.All other uses are prohibited.
Bonded abrasive accessories are not allowed to be used with this machine.
125 mm concrete grinder with super-efficient, high frequency brushless motor for high performance, long life and long duty cycles.
Vertical style design is especially good for grinding floors and the isolation handle mounts protect the operator from vibration.
Max. Capacity:125 mm
Type:High Frequency Brushless (Vertical Drive)
BG5
INTRODUCTION
This machine is a special, high-frequency, PMSM power tool (permanent magnet synchronous motor). It must be only be used with its special power converter, which acts as a motor controller.
The converter also provides variable speed control.
Connection between the converter and motor is made by a motor coupling cable with special plug.
The power converter has overload, thermal, under voltage and over voltage protection.
RECOMMENDED ACCESSORIES
This machine may only be used with diamond cup wheels of 125mm diameter with 22.23mm (7/8") arbor
hole or with M14 female thread.All other uses are prohibited.
Bonded abrasive accessories are not allowed to be used with this machine.
125 mm concrete grinder with super-efficient, high frequency brushless motor for high performance, long life and long duty cycles.
Vertical style design is especially good for grinding floors and the isolation handle mounts protect the operator from vibration.
- Constant speed is maintained regardless of load for an even finish.
- LED Indicator for optimizing grinding efficiency with overload and overheat warning.
- IP55 waterproof and dustproof construction makes it ideal for grinding hazardous materials.
- Tool-free sliding cover for edge grinding.
- Hall effect switch is waterproof and dustproof. It includes anti-restart function to protect operator in the event of interrupted power supply.
- Effective dust control skirt with spring suspension and replaceable brush.
- Anti-vibration handle mounts for fatigue free operation.
- Built-in lugs for mounting to the Floor Grinding Trolley.
Max. Capacity:125 mm
Type:High Frequency Brushless (Vertical Drive)
