Diamond Core Drill
| Item No.: | DM51D, DM51P |
Supplier Details
Country: Taiwan
City: Yunlin County 640
Address: No. 2, Kejia Rd., Douliu City
TEL: +886-5-5518689
Fax: +886-5-5518635
Online Showroom:
74 Products

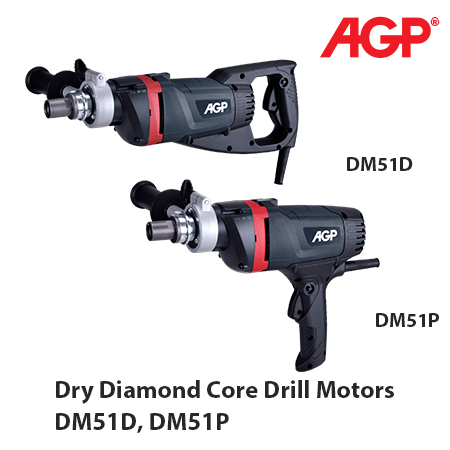

Dry Diamond Core Drill Motors DM51D, DM51P
DM51D, DM51P
OPERATING INSTRUCTIONS
Mounting the core bit
CAUTION: Ensure that the threads of the spindle and the core bit match. Attempting to mount
mismatched threads will result in damage to both threads.
Ensure both the core bit and the machine spindle are clean. Any debris could cause excessive run-out of the mounted core bit. Excessive run-out can cause premature failure of the core bit and/or a safety hazard.
Tighten the bit to the spindle using two wrenches.
Choosing the correct core bit for the job:
Ensure that the bit you are using is suitable for the material you are drilling. There are two main types of diamond core bit:
Dry type diamond core bits and wet type-sintered (impregnated) diamond core bits.
This machine should only use Dry type bits:
Dry type core bits are suitable for less hard materials. They tend to work well with softer, abrasive materials like brick. Only dry type bits are suitable for use with soft percussion function.
Water should always be used to cool and lubricate the bit and to flush out abrasive particles formed while
SPECIAL INSTRUCTIONS FOR DRY DRILLING: (Dry drilling models only)
Dry drilling is a different process from wet drilling. It is more of a cutting process and you must use a much lighter touch.
When dry drilling, you must not push too hard. Allow the tool to work at its own pace.
Dry drilling is normally done in softer materials. Note that in very hard materials it may not be possible to drill dry.
Features
1. Single speed gearbox with clutch.
2. Electronic motor management with soft start, overl oad and thermal protection.
3. Horizontal spirit level for precise alignment.
4. Switchable soft percussion for optimized dry drilling.
5. Side handle in-line with spindle centerline for best control.
Light, compact, high efficiency 1800 W coring motors for dry drilling up to 112 mm.
Power:1800 W
Max. Capacity:Dry: 112 mm
Type:Dry drilling (brick)
DM51D, DM51P
OPERATING INSTRUCTIONS
Mounting the core bit
CAUTION: Ensure that the threads of the spindle and the core bit match. Attempting to mount
mismatched threads will result in damage to both threads.
Ensure both the core bit and the machine spindle are clean. Any debris could cause excessive run-out of the mounted core bit. Excessive run-out can cause premature failure of the core bit and/or a safety hazard.
Tighten the bit to the spindle using two wrenches.
Choosing the correct core bit for the job:
Ensure that the bit you are using is suitable for the material you are drilling. There are two main types of diamond core bit:
Dry type diamond core bits and wet type-sintered (impregnated) diamond core bits.
This machine should only use Dry type bits:
Dry type core bits are suitable for less hard materials. They tend to work well with softer, abrasive materials like brick. Only dry type bits are suitable for use with soft percussion function.
Water should always be used to cool and lubricate the bit and to flush out abrasive particles formed while
SPECIAL INSTRUCTIONS FOR DRY DRILLING: (Dry drilling models only)
Dry drilling is a different process from wet drilling. It is more of a cutting process and you must use a much lighter touch.
When dry drilling, you must not push too hard. Allow the tool to work at its own pace.
Dry drilling is normally done in softer materials. Note that in very hard materials it may not be possible to drill dry.
Features
1. Single speed gearbox with clutch.
2. Electronic motor management with soft start, overl oad and thermal protection.
3. Horizontal spirit level for precise alignment.
4. Switchable soft percussion for optimized dry drilling.
5. Side handle in-line with spindle centerline for best control.
Light, compact, high efficiency 1800 W coring motors for dry drilling up to 112 mm.
- Single speed gearbox with clutch.
- Electronic motor management with soft start, overload and thermal protection.
- Horizontal spirit level for precise alignment.
- Switchable soft percussion for optimized dry drilling.
- Side handle in-line with spindle centerline for best control.
Power:1800 W
Max. Capacity:Dry: 112 mm
Type:Dry drilling (brick)
