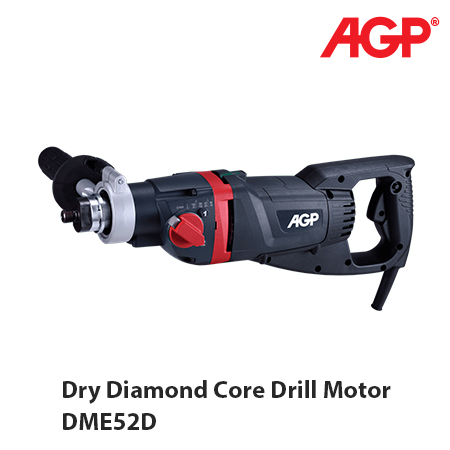

Dry Diamond Core Drill Motor DME52D
DME52D
DME52D Introduction
The DME52D is a versatile two-speed dry drilling motor with soft percussion. Differentiating it from its brother, the DM52D, the DME52D has external dust collection for drilling highly abrasive materials.
Target Group & Applications
Area using kalksandstein (silicate stone) as building material (mainly in Holland & Germany).
The dust created by kalksandstein is very thin, and it can go into the gear box when soft impact is applied.This tool will be suitable for plumbers, HVAC installers, electricians, and more. The external dust extractor feature is specially designed for area where silicate stone (kalksandstein) are applied, mainly in Netherlands and Germany.
A compact, high efficiency 2 speed 1800 W drilling motor for dry drilling up to 222 mm. Suitable for drilling of highly abrasive materials. Switchable soft percussion allows optimal dry drilling performance.
Power:1800 W
Max. Capacity:Dry: 222 mm
Type:Dry drilling (brick)
DME52D
DME52D Introduction
The DME52D is a versatile two-speed dry drilling motor with soft percussion. Differentiating it from its brother, the DM52D, the DME52D has external dust collection for drilling highly abrasive materials.
Target Group & Applications
Area using kalksandstein (silicate stone) as building material (mainly in Holland & Germany).
The dust created by kalksandstein is very thin, and it can go into the gear box when soft impact is applied.This tool will be suitable for plumbers, HVAC installers, electricians, and more. The external dust extractor feature is specially designed for area where silicate stone (kalksandstein) are applied, mainly in Netherlands and Germany.
A compact, high efficiency 2 speed 1800 W drilling motor for dry drilling up to 222 mm. Suitable for drilling of highly abrasive materials. Switchable soft percussion allows optimal dry drilling performance.
- Gear box with mechanical clutch.
- Smart Electronic Control with soft-start, thermal protection, and overload protection.
- Switchable soft percussion for optimized dry drilling.
- Side Handle in-line with spindle centerline for best control.
- Built in horizontal levels for precision.
- External Dust Extractor Head for use with 50 to 82 mm banana slot type bits (Optional).
- Spring-loaded Centering Pilot for L 85 mm bits or for L 65 mm bits. (Optional).
Power:1800 W
Max. Capacity:Dry: 222 mm
Type:Dry drilling (brick)
