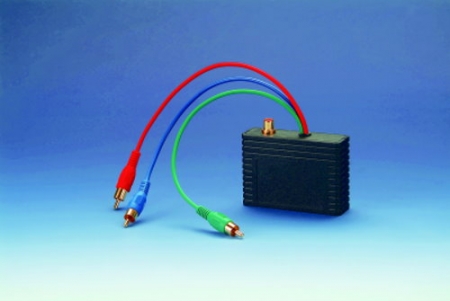

Component Video with Digital Audio Balun - 03-R414-20

Component Video with Digital Audio Balun

Item No.: 03-R414-20
Supplier Details
LANTAC TECHTRONICS CO., LTD.
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom: 81 Products
Specification： ‧Bandwith：Video DC TO 8MHz Digital Audio 25 MHz ‧Video Input：1.1 Vp-p max. ‧Insertion Loss：  ≦ 2dB over the frequency range from DC to 8 MHz ‧Return Loss：≧15 dB over the frequency range from DC to 8 MHz ‧Common Mode Rejection：≧40dB at 8 MHz ‧Impedance：75 ohms (Video) ‧Cable-UTP：24 gauge or ohms at 1MHz                       Impedance：100 ohms at 1MHz                       Max.Capacitance：20 pf/ft                       Attenuation：6.6dB/1000ft at 1 MHz ‧Transmission Distatance：(Color) 330 feet(Cat 3 UTP) 500 feet (Cat 5 UTP) ‧Digital Audio：600 feet (Cat.5) ‧Temperature：Operating：0° to 55°C                          Storage：-20° to 85°C                          Humidity：up to 95%
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Component Video with Digital Audio Balun

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
