CCD Microscope Camera - MC30

CCD Microscope Camera

Item No.: MC30
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom: 41 Products

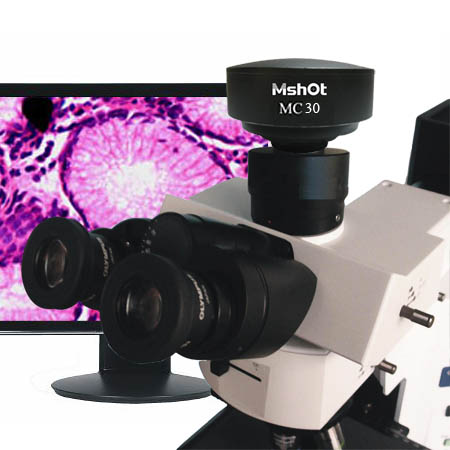

MC30 professional digital microscope camera use Sony ICX252 CCD and have the useful real-time preview function.

Up to 3.3 mega pixels allows MC30 professional digital microscope Camera to capture high quality images of bright field, dark field and fluorescence.

What' more,MC30 professional digital microscope Camera can be used under the condition of dim light. Specifically,the applications of MC30 professional digital microscope Camera's  digital imaging function include faint light, chemiluminescence, bioluminescence, flow cytometery, GFP,FISH,NIR ,FRET, bright or dark field, DIC, living cells, IHC and so on.

The USB2.0 design of MC30 professional digital microscope Camera makes it easy to realize the connections between PC and the camera.

Meanwhile, after the installation of the software comes with MC30,you can easy to preview, capture or video the images as you like.



MC30 Features review:

■ High resolution & high quality image

■ Real time preview and focusing

■ Full field image refresh rate up to 25fps, choosing ROI will be more.

■ USB2.0 design makes it easy to carry and install.

■ Standard C-MOUNT is widely use in connection between microscope and camera.

■ Sony ICX252 CCD, good quality guarantee.



Performance evaluation:

Model

MC30

Sensor

Sony ICX252 CCD

Resolution

2048 X 1536, 3.3 mega pixels

Pixel Size

3.45μm X 3.45μm

Frame Rate

12fps@2048 X 1536

30fps@640 X 640

Binning

2X3,3X3 or 4X4,color

Shutter

Electronic shutter

S/N ratio

72dB

Scan Mode

Progressive scanning

Operating Temp

-10°C~-60°C



PC configuration needs:

CPU

Requirement

Pentinum 4,2.4 Ghz or above,Pentinum M,1.4 GHz or above

Recommend

Pentinum D930,3.0 GHz,Dual core,Pentinum M,2.6 GHz

Hard Disk Capacity

Requirement

5 Gb or more

Recommend

20 GB

EMS Memory

Requirement

512 Mb or more

Recommend

1GB

Operating System

Microsoft windows 2000,XP SP2/SP3,Vista

Interface

USB2.0

Application Software

Mingmei Image processing Software

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

CCD Microscope Camera

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
