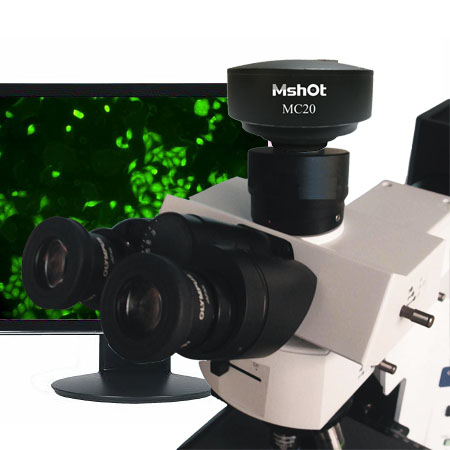

CCD Microscope Camera
| Item No.: | MC20 |
MC20 professional digital microscope Camera uses EXview HAD CCD,the same chip as Olympus DP71.The imaging quality captured by MC20 is comparable with Olympus DP71.MC20 can be used to observe faint light, chemiluminescence,bioluminescence,flow cytometery, GFP,FISH,NIR ,FRET, bright or dark field, DIC, living cells, IHC and so on.
With a standard C-MOUNT, MC20 can be widely connected to various kinds of microscopes.
Features:
■ High resolution & high quality image
■ Speed of preview15fps, resolution1360*1024.
■ USB2.0 design makes it easy to carry and install.
■ Standard C-MOUNT is widely use in connection between microscope and camera.
■ 2/3" SONY EXview HAD CCD, good quality guarantee.
Specification:
Sensor | 2/3" SONY EXview HAD CCD | Readout noise | 8e- |
Resolution | 1360*1024,12bit | Spectral response | 400nm～1000nm |
Pixel size | 6.45μm x 6.45μm | Interface | USB2.0 (480 Mbit / sec) |
Frame rate | 15fps @ 1360 x 1024 | Power | DC 5V ± 5% |
60 fps @ 640 x 480 | Electricity | ≈200 mA | |
Bining | 2x2,4x4 | Adapter | C-mount |
Shutter | Electronic shutter, continuous variable speed | White balance | Manual/Auto One-touch |
S/N ratio | 72dB | Automatic Exposure Control | 1/44000s–115s, Automatic Exposure |
Scan Mode | Progressive scanning | Software | Display,capture,video,measure |
Operating Temp | -10°C ~ 75°C | Application | Faint light, chemiluminescence,bioluminescence,flow cytometery, GFP,FISH,NIR ,FRET, bright or dark field, DIC, living cells, IHC and so on. |
