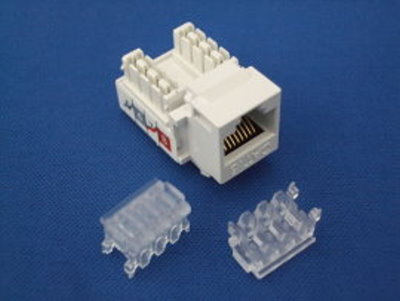

Cat.6 Keystone Jack with 3 in 1 IDC
| Item No.: | 28-3621-12 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom:
81 Products
The Cat.6 unshielding Keystone Jack are used for high speed LAN's, this designation applies to 100 Ohms twisted-pair cables, the transmission characteristics shall meet the requirements of TIA/EIA 568B specification.
Material and Finish：
Housing : PC (polycarbonate) UL94V-0
Jack wiring : 30~50 micro inch of gold plating, over 100 micro inch of nickel
IDC conector : PC UL94V-0 with 110 IDC stander type.
Mechanical：
Instertion : 750 cycles min
IDC connecter accept 22-26AWG solid wire
Electrical：
Insertion Resistance : 500M ohms min
Contact Resistance : 20M ohms max.
Current rating : 1.5 Amps
