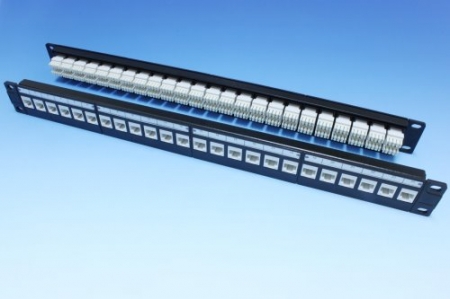

Cat.5e 24 Port Patch Panel Keystone Type/ Mini - 24-1324-AA

Cat.5e 24 Port Patch Panel Keystone Type/ Mini

Item No.: 24-1324-AA
Supplier Details
LANTAC TECHTRONICS CO., LTD.
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom: 81 Products
◎Performance: Meets Cat.5e EIA/TIA 568B Standard. ◎Materials: Front Plate     : Fireproof ABS UL-94V0 Panel             : Metal (SPCC) Keystone Body: Fireproof ABS UL-94V0 Jack               : 8P8C 50 micro inches gold plated PCB                : FR-4 / UL-94V0 IDC Body         : Fireproof ABS UL-94V0 IDC Pin            : Bronze & Tinned IDC Description : For 22-26 AWG. For 110 or Krone punch-down Tool ◎Electrical Sepcifications: Insulation Resistance: 500M ohms (min.) Contact Resistance  : 20m ohms (max.) Current Rating        : 1.5 Amps. DC Resistance         : 0.1 ohms (max.) Withstanding Voltage: 1000 VAC RMS @ 60Hz / 1 min.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Cat.5e 24 Port Patch Panel Keystone Type/ Mini

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
