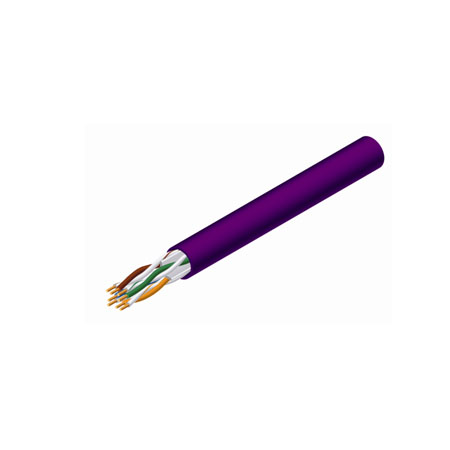

CAT 6 U-UTP SOLID CABLE
| Item No.: | 66504 |
ISO/IEC 11801:2002(Ed.2.0), including amendments A1:2008 and A2:2010
IEC 61156-5:2009(Ed.2.0)
EN 50173-1:2011
EN 50173-2:2007 including amendment A1:2010
ANSI/TIA-568-C.2:2009
|
Capacitance unbalance (max.) @ 0.8 or 1 kHz(pF/km) |
1600 |
|
DC Resistance (max.) Ω/km @ 20℃ |
95 |
|
Resistance unbalance within a pair (max.) (%) |
2 |
|
Resistance unbalance between pairs (max.) (%) |
4
|
|
Delay Skew (max.) Ns/100m @ 20℃ |
45 |
|
Mean Input Impedance @ 100 MHz Dielectric strength |
100 ± 5Ω
Min Min 1.0kVdc 2.5kVdc or or 0.7kVac 1.7kVac for 1 min. for 2 secs. |
ELECTRICAL PERFORMANCE
|
MEET IEC 61156-5 ed2.0 Category 6 horizontal cable parameters | |||||||
|
Freq. (MHz) |
Ins.Loss |
RL |
Pair to Pair |
Power Sum |
Po. Delay | ||
|
NEXT |
ELFEXT |
NEXT |
ELFEXT | ||||
|
(dB/100m) |
(dB) |
(dB/100m) |
(dB/100m) |
(ns/100) | |||
|
Max. |
Min. |
Min. |
Min. |
Max. |
Min. |
Max. | |
|
1 |
- |
20.0 |
- |
- |
- |
- |
- |
|
4 |
3.8 |
23.0 |
66.3 |
56.0 |
63.3 |
53.0 |
552.0 |
|
10 |
6.0 |
25.0 |
60.3 |
48.0 |
57.3 |
45.0 |
545.4 |
|
16 |
7.6 |
25.0 |
57.2 |
43.9 |
54.2 |
40.9 |
543.0 |
|
20 |
8.5 |
25.0 |
55.8 |
42.0 |
52.8 |
39.0 |
542.0 |
|
31.25 |
10.7 |
23.6 |
52.9 |
38.1 |
49.9 |
35.1 |
540.4 |
|
62.5 |
15.5 |
21.5 |
48.4 |
32.1 |
45.4 |
29.1 |
538.6 |
|
100 |
19.9 |
20.1 |
45.3 |
28.0 |
42.3 |
25.0 |
537.6 |
|
200 |
29.1 |
18.0 |
40.8 |
22.0 |
37.8 |
19.0 |
536.5 |
|
250 |
33.0 |
17.3 |
39.3 |
20.0 |
36.3 |
17.0 |
536.3 |
