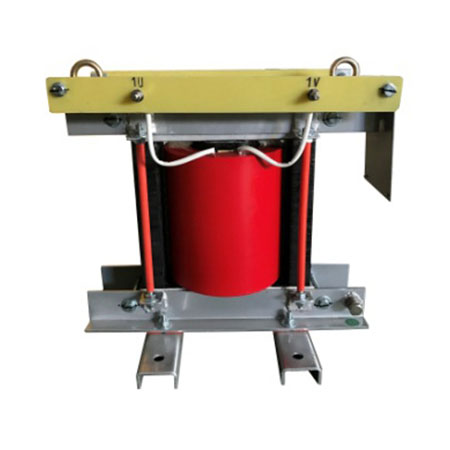

Single Phase Transformer
Item No.: | 4-4 |
Supplier Details
Country: Taiwan
City: Taoyuan City 330
Address: No.18, Ln. 50, Daren Rd., Taoyuan Dist.
TEL: +886-3-3639519
Fax: +--
Online Showroom:
26 Products
LV Cast Resin Transformers(Single Phase) Specification
- Scope of application
This specification includes the following rated capacity, design, manufacturing, testing, handling, installation, and warranty of high-permeability directional silicon steel sheet iron core cast resin dry type transformers for indoor use. - Applicable standards
Relevant manufacturing and testing standards are in accordance with CNS 13390 C4468 or IEC 60076-11 specifications unless otherwise specified by the customer. - Applicable conditions
a.Load: continuous rated load.
b.Location of use: indoor type below 1000 meters above sea level.
c.One week temperature: maximum 40 ° C.
d.Insulation class: Class F - Transformer characteristics
a.Type: self-cooling, indoor type, resin type dry winding.
b.The above performance is a reference value.All performances should be marked based on the final approval information or test report.
c.For other specifications transformers, relevant technical data will be provided separately according to customer requirements.: - Outer tank protection: (if needed)
(1) For IP20, it is only for indoor use.
(2) For IP23 or above, it can be used outdoors. - Test: Before leaving the factory, the transformer performs in-plant testing and submits a test report..
- Warranty: Store for 18 months after delivery or run for 12 months under normal use.
- Factory Certification: ISO 9001, ISO 14001, OHSAS 18001, UL 1561, TAF17025 Laboratory
- Delivery method: Domestic - truck up to the ground / Foreign – CIF
