Corner Radius Cutter - 4-7

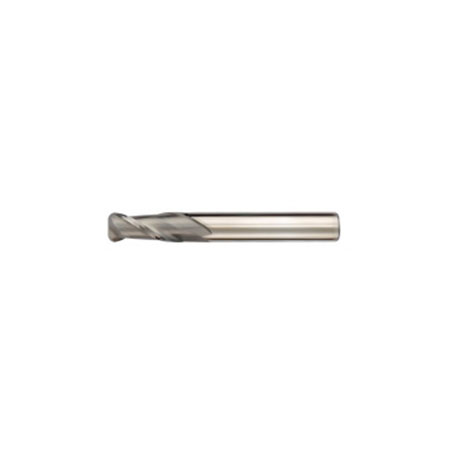

Corner Radius Cutter

Item No.: 4-7
Supplier Details
Country: Taiwan
City: Taiwan
Address: No.95, Zhongzheng 2nd St., Yongkang Dist., Tainan City
TEL: +886-6-2426816
Fax: +886-6-2423818
Online Showroom: 59 Products
  1. Item: Carbide Corner Radius – Regular / Long Flutes / Long Shank
  2. Tungsten Carbide Grain size: 0.3 - 0.6μm
  3. Co(%): 8 - 11.5%
  4. Helix Angle: 35°
  5. R Angle: 0.2~3R
  6. Flute Diameter: 1.0~12.0 mm
  7. Shank Diameter: 4.0~12.0 mm
  8. Full Length: 50~100 mm
  9. Effective Length: 6.0~12.0 mm (for Long Flutes / Long Shank)
  10. Coating: not-plated or AlTiN
  11. Workpiece materials: plastics, aluminum alloy, iron, copper alloy, cast iron, alloy steel, stainless steel, tool steel. (HRC45, HRC50, HRC55)
  12. Application: complete mould and R-groove cutting in one process to effectively speed up production
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Corner Radius Cutter

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
