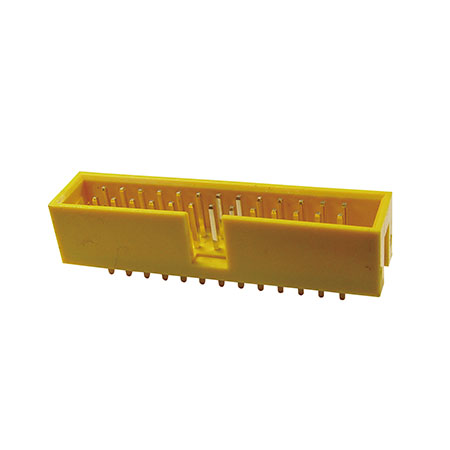

2.54 mm Box Header

Item No.:

BXNB-26X642-XXXX

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : BOX HEADER CONNECTOR
Normally only used in combination with insulation-displacement connectors (IDC) for ribbon cables. A notch (key) in the guide box normally prevents placing the connector (polarised by a "bump" on one side) the wrong way around
Solder Type : SMT, Right Angle, Straight, IDC
Row of Plastic : Dual Row
Contact Material : Phosphor bronze
Insulator Material : Polyester, IL 94V-0
Standard : Nylon-9T
Current Rating : 15A
Insulation Resistance : 2,000mΩ
Contact Resistance : 20mΩ
Dielectric Withstanding : 500V AC
Operating Temperature : -40 to 105°C (maximum)
Processing Temperature : 230 for 30 seconds
No. of PINS : 6~64 PINS
ISO Certification : ISO9001, ISO14000
Rohs Compliance : Yes
Material : PBT, PA46, PA6T, PA9T, LCP
Packaging Details : Our standard packaging is plastic tray at first then put into carton box, also able to be customized by needs.
We offer ODM and OEM services, colors are flexible.
For Electronic Products, Industrial Computers, Communication Systems, Aftermarket parts etc.
